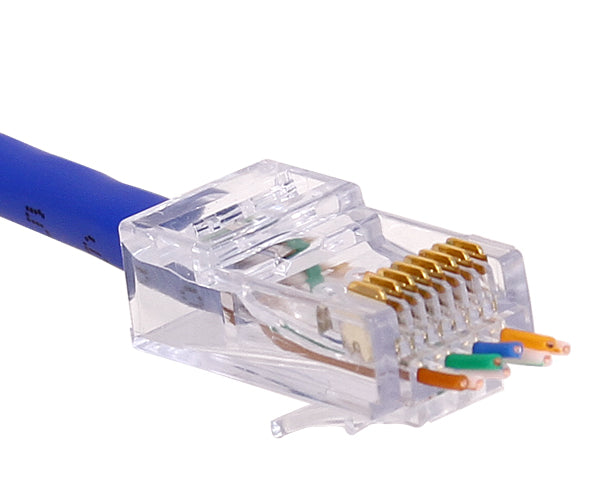

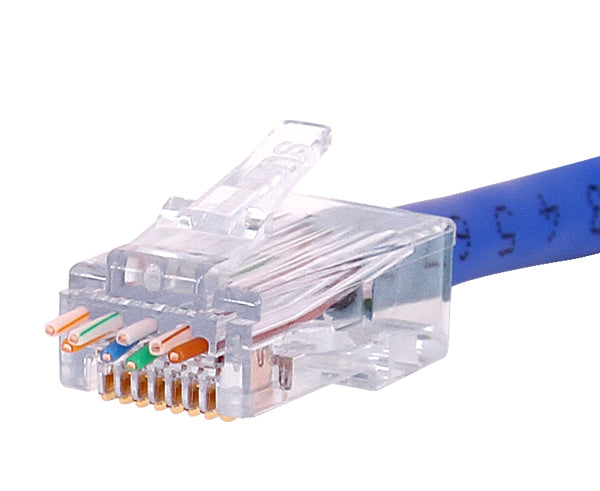

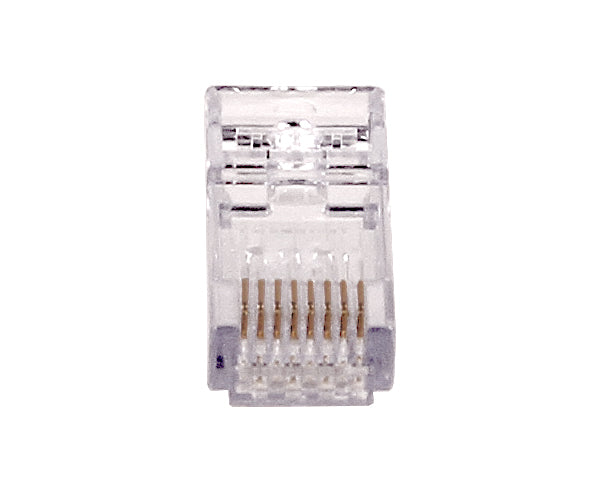

CAT5E/6 ezEX38 RJ45 Connector with Loadbar - PoE+ Compatible, OD Under 7.36mm - Ideal for Network Installations, Data Centers & High-Speed Ethernet Connections

Description

Former Part Number: CN1-4301-Z6

Choose the Right RJ45 Connector

This ezEX™ 38 RJ45 Connector is ideal for cables such as CAT5e and CAT6. The RJ45 style connector allows the wires to be pulled through the front of the connector in an efficient manner while maintaining high signal integrity. This makes it easy to verify the wire sequence. Allowing more error-free installations, which reduces scrap.

Standard RJ45 Issues

The most common issue with traditional pass-through connectors is the incomplete trimming of conductors, leading to voltage shorts & crosstalk. This gets worse as your crimp tool's blade dulls with use.

What Makes ezEX Different?

ezEX-RJ45 connectors feature a molded load bar ensuring conductors are completely trimmed off during the crimping process.

Additionally, ezEX-RJ45 connectors feature a patented hi-lo staggered wire path, reducing near-end crosstalk and allowing for larger diameter conductors.

ezEX-RJ45 connectors are available in a variety of constructions, accommodating both shielded and unshielded cable up to 0.290" diameter & 24- 22AWG conductor sizes.

Looking For RJ45 Accessories?

Please consider us for any of your other networking needs. We've got , many styles of , and other items. Keep in mind, you're going to need a , and we've got 'em.

The  is the original, patented RJ45 crimp system featuring a swappable cassette for either ezEX-RJ45 or EZ-RJ45 pass-through connectors.

Features

Features

• Hi-Lo Stagger to Isolate Each Conductor
• Simple One-piece and Pass Through Design
• 50 Micro-inch Gold Plated Contacts
• Insulation Diameter:
  0.033" - 0.038" (0.84mm - 0.97mm)
• Max Outer Diameter:
  0.290" (7.36mm)
• Fits Solid or Stranded 24 - 22 AWG Cable
• PoE & PoE+ Capable
• RoHS, UL, TIA, TAA, & FCC Compliant
• Made in the USA

Specifications

Specifications

What's In The Box

What's In The Box

• Qty 1 (50 Pack and/or 100 Pack) - ezEX™ 38 RJ45 Connector, Hi-Lo Stagger, Loadbar
