Leverage the power of 40G with shielded termination plugs. Your data network is only as strong as your weakest link, so if you're using CAT8 Ethernet cable, make sure you have the correct plugs for the job.

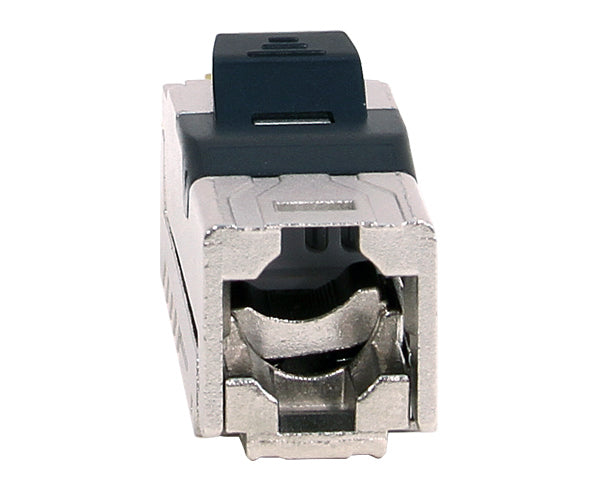

The shielded CAT8 field termination plug is designed specifically for CAT8 bulk cable. This 8 pin 8 conductor (8p8c) plug has 50 micro inch gold plated contacts for superior signal conductivity. The wire alignment insert provides an efficient termination without a crimp tool, although a cable stripper is recommended to prepare the cable for termination. This connector has been rated for PoE and is capable of power transfer.
This connector housing is shielded with zinc die-cast nickel plating. This makes our CAT8 plugs more durable while being less prone to corrosion and rust. All our CAT8 plugs come standard with two different sizes of boots. These boots provide better stress relief support around the connection point of the cable and connector.
The copper foil included with the RJ45 connector will also further shield from any unwanted EMI or crosstalk. So, update your system today so your company can get faster, more efficient conversion rates.
Please consider us for any of your other networking needs. We've got , many styles of , and other items.
| Width | 13.8mm |
| Height front | 18.4mm |
| Height rear | 14.5mm |
| Length | 62.18mm (Including Boot) |
| Conductor Space | 6.6 X 11.68 mm (H x W) |
| Insertion Force | 30N max. |
| Retention Strength | 7.7 Kg between jack and plug |
| Operating Temperature | -10ºC to 60ºC |
| Life Cycle (Mating) | 750 cycles min. |
| IDC Life Cycle | Suitable for 22 - 24 AWG stranded and solid wire, min. 20 installation cycles |
| Extractor | UL 94V-2 black plastic |
| Housing | Zinc die-casting with nickel plating |
| Contact Material | Phosphor bronze with 100 micro-inch nickel plate |
| Contact Finish | min. 50 micro-inch gold plating |
| Wire Management Bar | UL 94V-2 white plastic and glass fiber |
| IDC Housing | UL 94V-2 white plastic |
| IDC Terminal | Titanium copper with tin plating |
| Grounding Contact | Zinc die-casting with nickel plating |
| Boots | UL 94V-2 transparent plastic |
Our Shielded RJ45 connector for CAT8 cable is compatible with:
