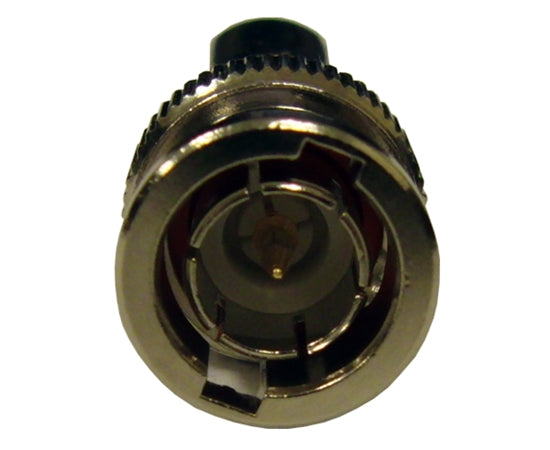

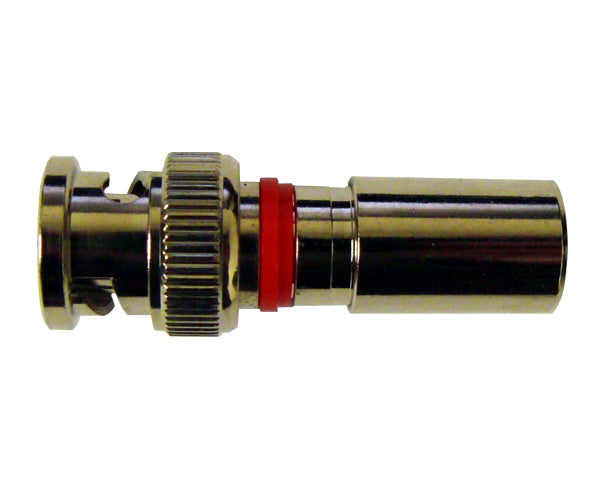

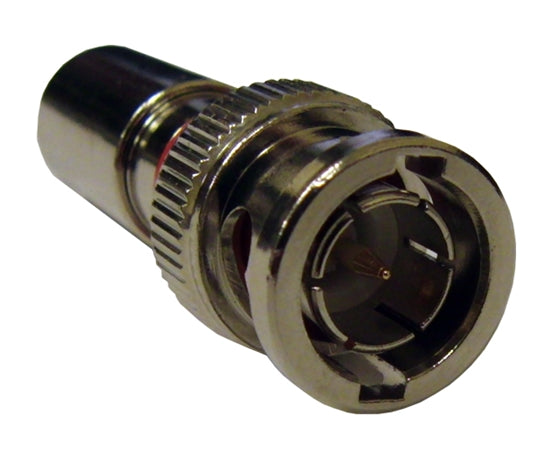

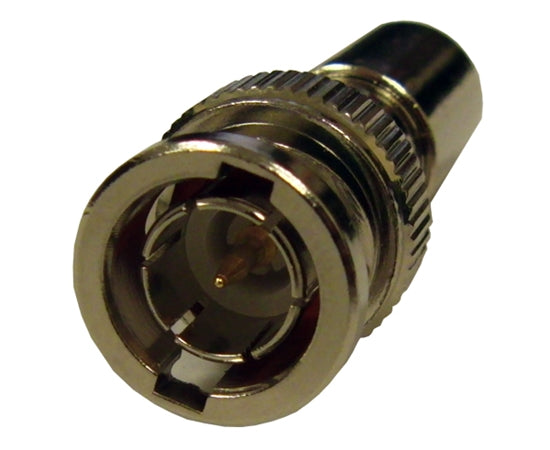

The RG59 Male Compression BNC Connector is made for ease of installation and efficiency. It fits both CM-rated and CMP plenum jacketed RG59 coaxial cable. This BNC connector is ideal for CCTV applications requiring a 75-ohm impedance. Use this BNC connector on 20 AWG diameter RG59 coaxial cables. These connectors for RG59 Coax Cables are used with CCTV, Audio/Video Applications, and Surveillance Camera Systems.
A broad range of applications exists for coaxial cabling. It is widely used with home entertainment equipment such as Cable Television (CATV) and TV Cable Wire, Digital HDTV, Audio / Video, and Digital Satellite. It is also used with security cameras and GPS Systems.
Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connect radio transmitters and receivers to their antennas, computer network (Internet) connections, and digital audio (S/PDIF), and distribute cable television signals.
Technical Specifications | |
|---|---|
Connector Body | Brass |
Plating | Nickel |
Contact | Brass |
Insulator | Delrin |
Gasket Seal | Silicon Rubber |
Coupling Types | Bayonet Nut Coupling (BNC) |
Termination Type | Compression Seal |
To learn more about our BNC Coaxial Cable Connectors here is a link to a page containing more information on our premium .
