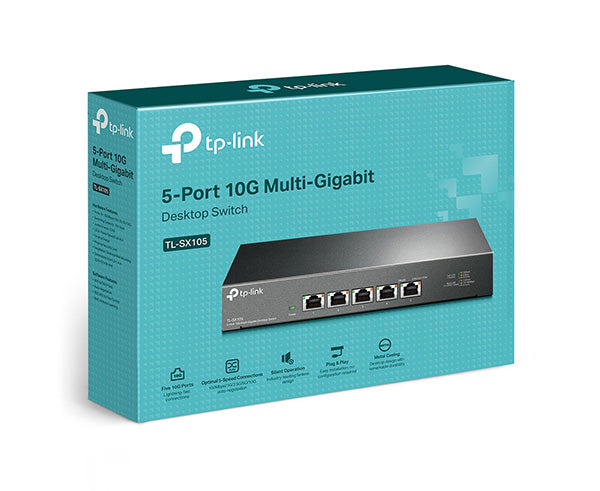

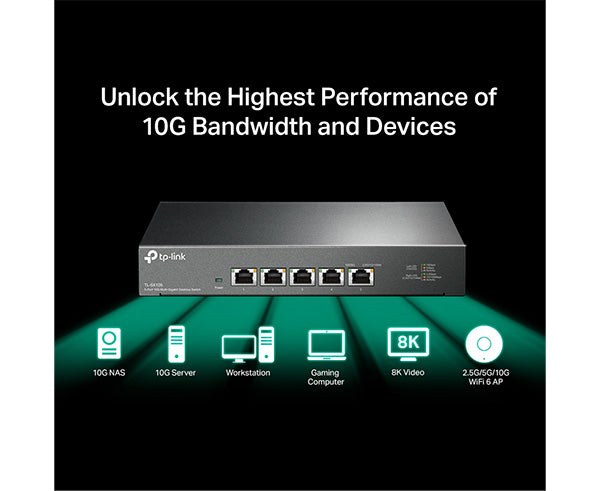

As the flagship 10G product, TL-SX105 is a 5-port 10G desktop switch, providing up to 100 Gbps of switching capacity. Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 10G NAS, 10G server, workstation, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, desktop, and more.
Ready for Immediate Network Upgrading to 10G?Reliable, lightning-fast connections and the lowest possible latency make it ideal for gaming and small office and home office use.
Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let’s begin the unprecedented smooth game!
Ideal for Home EntertainmentEnjoy buffer-free multi-channel 8K videos with friends and family for movie nights with maximum entertainment.
Expand the 10GE LAN ports of your WiFi 6 routers and connect more devices—all running at max 10 Gbps.
Work at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points.
Unlock the Real WiFi 6The best option to meet the full bandwidth potential of WiFi 6 access points with 10G wired connections.
Instant Transfer for WorkstationsImmediately back up and store computer files to NAS storage with increased transfer speeds, never waste time.
Silent Operation with Industry-Leading Fanless DesignThe revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business. Durable metal casing, desktop/wall-mounting design and professional heat dissipation design are well-suited for different environments.
Just Plug and Play for Internet AccessA plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.
Flexible Deployment OptionsThe versatile mounting system gives you the flexibility to place the 10G switch on a desktop or mount it to a wall.
Same Cables, New SpeedDesigned to integrate flawlessly into existing gigabit Ethernet network infrastructures, guaranteeing speeds 5× faster§ using standard Cat5e Ethernet cables—no Cat6 wiring needed. With Cat6a or higher rated cables, 10G connections are built up to 100 meters (328 feet).
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
|---|---|
| Interface | 5× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |

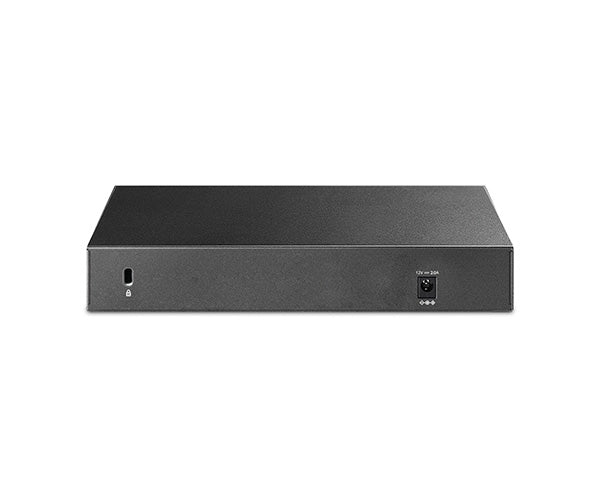

| External Power Supply | External Power Adapter (Output: 12 VDC / 2.0 A) |
| LED Indicator | • System Power: 1 • Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 8.9×5.2×1.4 in (226×131×35 mm) |
| Max Power Consumption | 21.4 W |
| Switching Capacity | 100 Gbps |
|---|---|
| Packet Forwarding Rate | 74.4 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 2 Mb |
| Jumbo Frame | 10 KB |
| Advanced Features | • 802.3X Flow Control • 802.1p/DSCP QoS |
|---|---|
| Transfer Method | Store and Forward |
| Certification | CE, FCC ,RoHS |
|---|---|
| Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
