 | Condition is new. Jacket printing and pull box are incorrectly marked as 20 AWG. |
The RG6 Siamese Coaxial Cable is commonly used in satellite, digital CCTV, and HDTV television networks, requiring high shielding for optimal signal preservation. With a denser jacket and thicker conductor than RG59, this cable enables data transfer at double the speed. We provide RG6 dual shield and quad shield options for improved signal preservation, ensuring crisp and clear digital images. Operating at 75 Ohms, the RG6 Coaxial Cable undergoes sweep testing at 3GHz for dependable performance.
This cable is compatible with our and Connectors.
Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cables also protect the signal from external electromagnetic interference. Coaxial Cables connect radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distribute cable television signals. This makes RG6 cable an ideal solution for coax cable for internet usage.

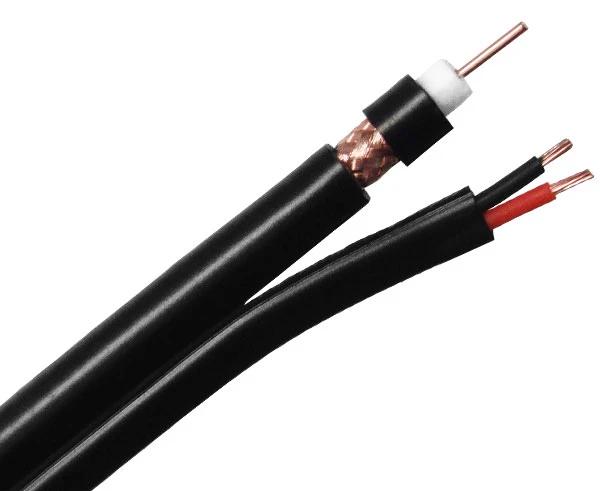

Our high-quality RG6 CCTV Siamese Coaxial Cable with 18/2 stranded BC power wires consists of an 18 AWG solid Bare Copper (BC) inner conductor that transmits the signal. It is wrapped in dielectric polyethylene insulation. This RG6 coaxial cable comes 95% Bare Copper Braid Shield. This is covered with a flame-rated PE jacket (CM).
A broad range of applications exist for coaxial cabling. It is widely used with entertainment equipment such as TV, VCR, DVR, and satellite receivers. It is also used with security cameras and GPS Systems. Since this RG6 Siamese Coaxial Cable has a solid copper conductor and two stranded bare copper power wires, it is the perfect cable choice for any CCTV transmission or surveillance system to run power and data in a single pass. This RG6 Siamese Coaxial Cable is available in a black jacket.
RG6 Coaxial Cable Options | |||||||||
|---|---|---|---|---|---|---|---|---|---|
CCTV | CATV | ||||||||
| Single Conductor | Siamese | Single Conductor | Siamese | Single Conductor | Single Conductor | Single Conductor | Single Conductor | Single Conductor+ Messenger | Single Conductor |
| Solid CCS (CMR) | Outdoor CCS (CMX) | ||||||||
Physical Characteristics | |
| Conductor Size | 18 AWG |
| Conductor Material | Solid Bare Copper |
| Dielectric Material | Foam PE |
| Shielding | 95% Solid Bare Copper |
| Outer Jacket Material | FRPVC & UV Resistance |
Electrical Characteristics | |
|---|---|
| Nominal Impedance | 75 Ohm |
| Nominal Velocity of Propagation | 83% |
| Nominal Capacitance | 53.48 Pf/M |
| Nominal Conductor DC Resistance DCR @ 20°C | 21.1 |
| Maximum Operating Voltage-UL | 300 |
Mechanical Characteristics | |
|---|---|
| Operating Temperature Range | -20°C to +60°C |
| Maximum Recommended Pulling Tension | N/A |
