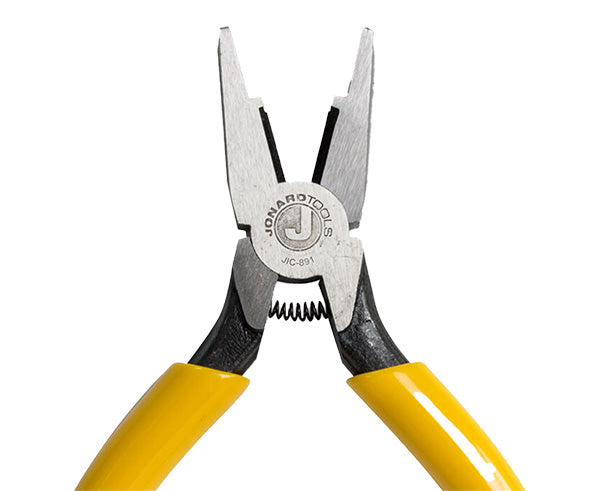

Connector-Crimper Pliers
Jonard’s pliers are made of heat treated carbon steel with induction-hardened cutting edges for maximum strength and durability.
Features
Features
- Designed to press UR/UY/UG, 709 series connectors, crimping “B” type connectors, and AMP Tel-Splice connectors
- Utilized on combinations of plastic and pulp insulated 19, 22, 24, and 26 copper conductors as well as 20 gauge plastic insulated copper steel wire
- Ergonomically designed handle with dipped plastic grip for greater comfort and torque
Specifications
Specifications
| Cutter Length | 1/2" (12.7 mm) |
|---|
| Jaw Length | 1" (25.4 mm) |
|---|
| Jaw Thickness | 3/8" (9.53 mm) |
|---|
| Jaw Width | 13/16" (20.64 mm) |
|---|
| Material | Carbon Steel |
|---|
| Length | 5(13.97cm) |
|---|
| Weight | 0.28 lb (128.936 g) |
|---|
| UPC # | 811490011229 |
|---|
Additional Information
Additional Information
| Jonard Tools Crimping Pliers (JIC-891 & JIC-22148) |
|---|
|
What’s In The Box
What’s In The Box
- Qty 1 - Connector-Crimper Pliers
