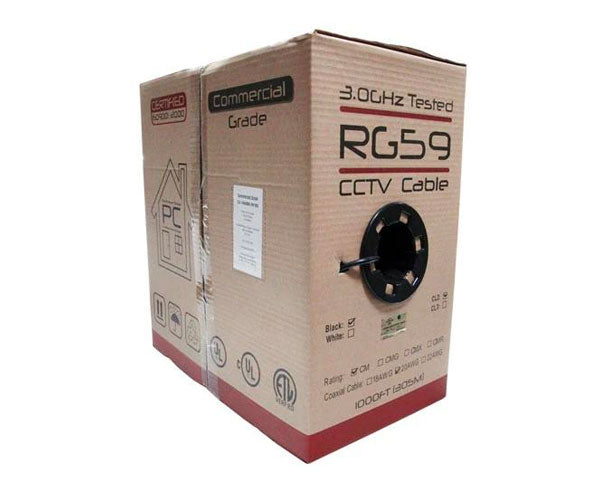

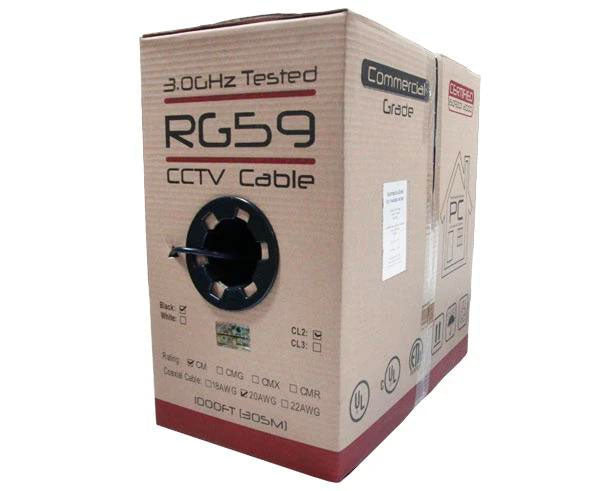

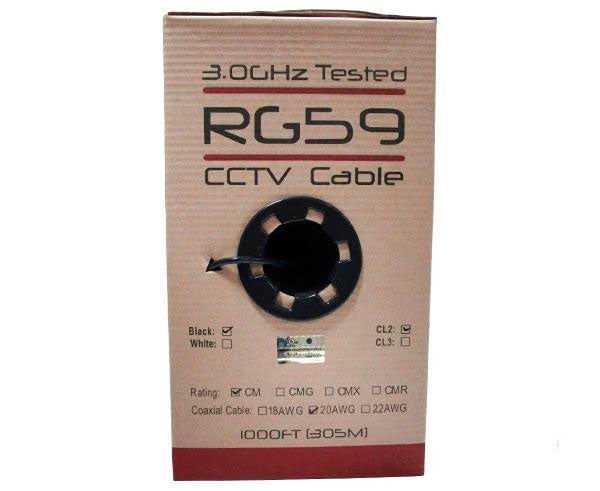

Our CCTV RG59 Coaxial Cable is a standard choice for wiring CCTV surveillance cameras and radio frequency applications. Featuring a CM jacket tailored for in-wall installation, this cable maintains a maximum resistance of 75 Ohms, making it unsuitable for high Gigahertz frequency support.
This cable is compatible with our or
Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also protects the signal from external electromagnetic interference. Coaxial Cables connect radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distribute cable television signals. This makes RG59 Coax cable an ideal solution for TV cable wire or coax cable for internet usage.

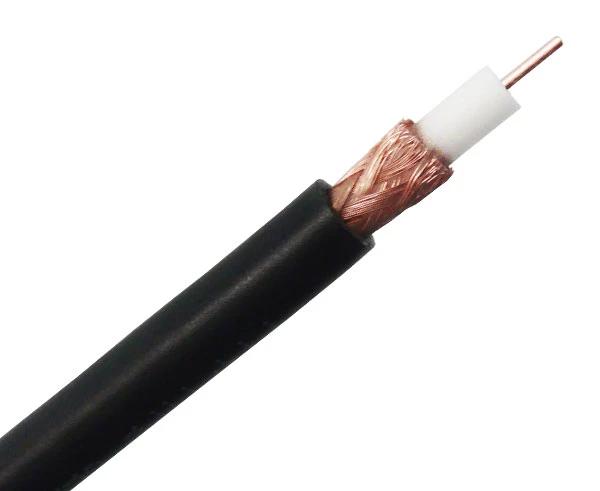

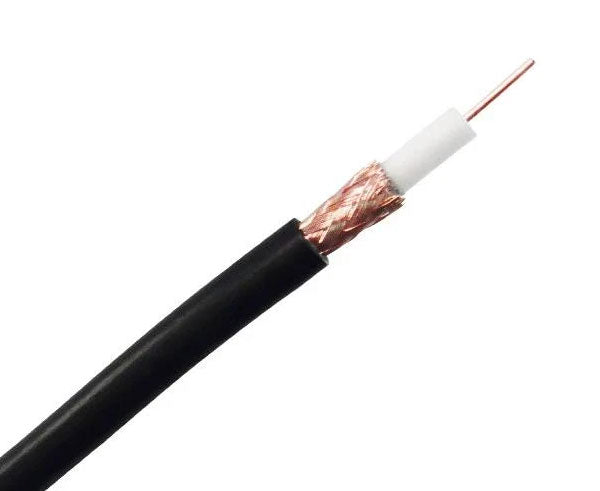

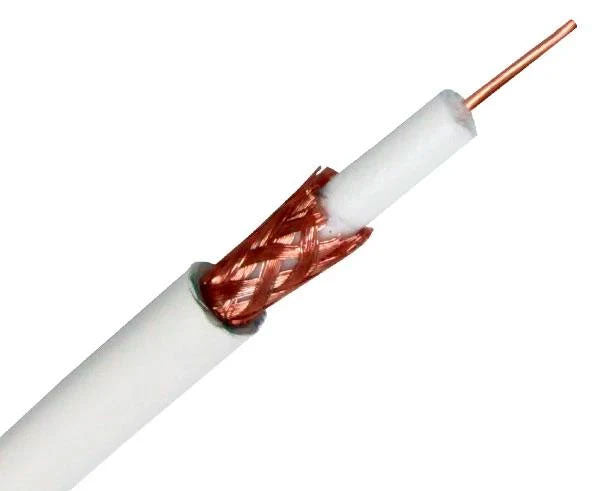

Our high-quality Coaxial Cable consists of a 20 AWG solid bare copper inner conductor that transmits the signal. It is surrounded by dielectric polyethylene insulation and 95% CCA braided shielding. This is covered with a flame-rated PVC jacket. Our cables are UL-listed and RoHS Compliant.
A broad range of applications exist for coaxial cabling. It is widely used with home entertainment equipment such as TVs, VCsR, DVRs, and satellite receivers. It is also used with security cameras and GPS Systems.

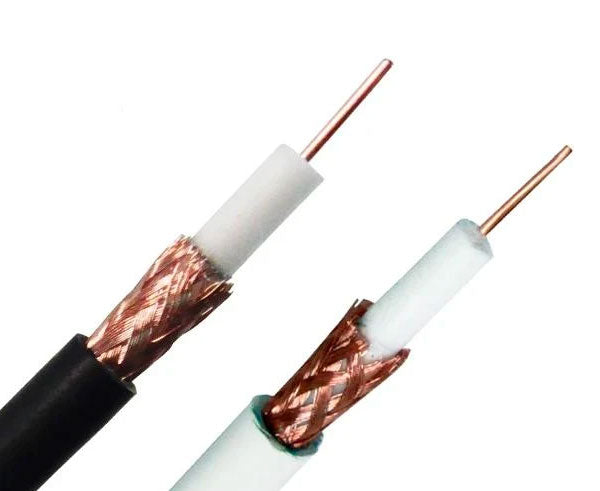

RG59 Coaxial Cable CCTV Options | ||||||
|---|---|---|---|---|---|---|
| Single Conductors | Siamese | |||||
Physical Construction | |
|---|---|
| Inner Conductor Material | Solid Bare Copper |
| Inner Conductor Size | 20 AWG |
| Insulation Material | Foamed PE |
| Shield Material | 95% CCA Braiding |
| Jacket Material | FR-PVC |
Electrical Characteristics | |
|---|---|
| Nominal Capacitance | 53.48 Pf/M |
| Nominal Impedance | 75 Ohm |
| Nominal Velocity of Propagation | 83% |
Mechanical Characteristics | |
|---|---|
| Operating Temperature | -20°C to + 60°C |
To learn more about our RG59 Bulk Coaxial Cable, here is a link to a page containing more information on our premium RG59 Bulk Coaxial Cable.
