41644202
Primus Cable Basic Rack Mount PDUs distribute reliable power to IT equipment in a wide variety of applications where intelligence and/or remote monitoring are not required.

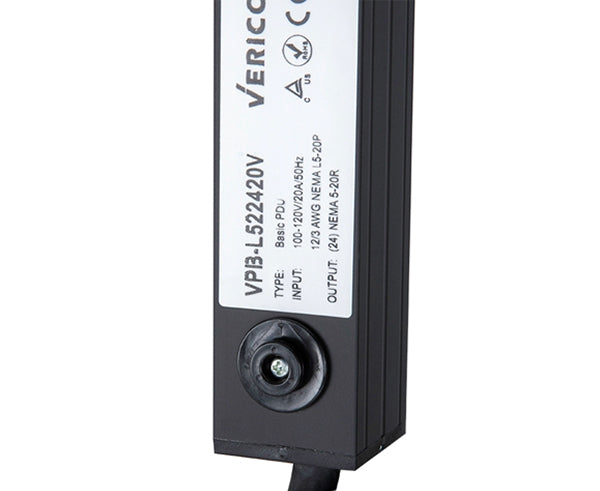

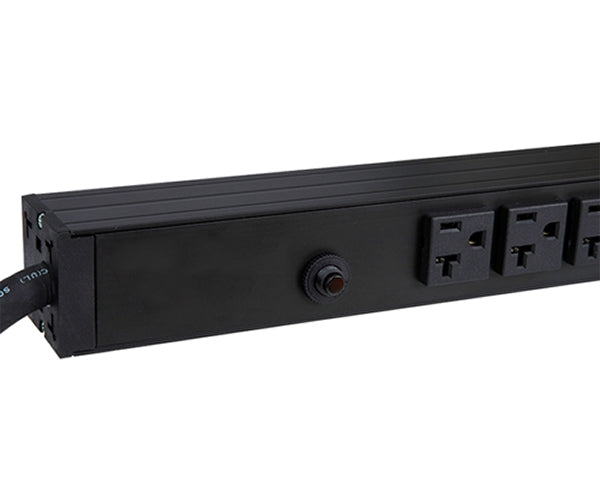

NPNB-VPB-L522420V features (24) NEMA 5-20R outlets protected by a single 20A circuit breaker, a reset button in the event of an overload, and a durable anodized aluminum chassis. A 10 ft power cord with a NEMA L5-20P twist-lock plug connects to an external power supply, while the versatile mounting design allows outlets to face any of three directions.
OVERVIEW | ||
|---|---|---|
Item Number | NPNB-VPB-L522420V | |
PDU Type | Basic | |
Form Factor | Vertical (zero U) | |
UPC Code | 846788117338 | |
OUTPUT | ||
Rated Output Voltage | 120V Single Phase | |
Output Recepticles | (24) NEMA 5-20R | |
Overload Protection | (1) 20A Circuit Breaker | |
INPUT | ||
Rated Input Voltage | 120V Single Phase | |
Max. Input Current | 20A | |
Frequency | 50/60 Hz | |
Power Capacity | 1.9 kW | |

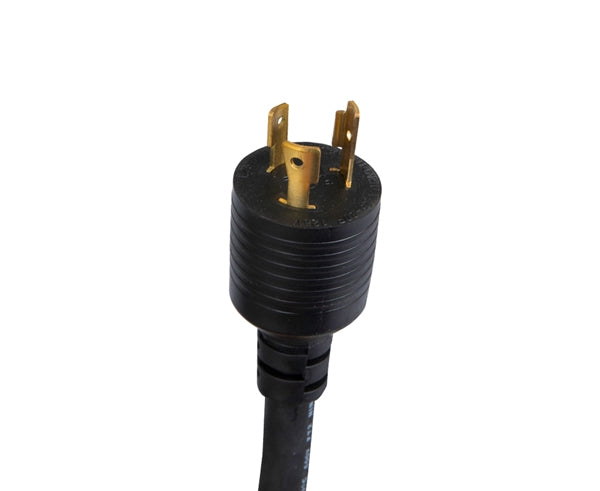

Plug Type | NEMA L5-20P Twist-lock | |
Cord Type | 12/3 AWG | |
Cord Length | 10 ft (3.05 meters) | |
PHYSICAL | ||
Unit Width | 38.9 inches (989mm) | |
Unit Height | 1.7 inches (44.0mm) | |
Unit Depth | 1.7 inches (44.0mm) | |
Unit Weight | 4.9 lbs (2.2 kgs) | |
Shipping Length | 43.3 inches (1,098.6mm) | |
Shipping Width | 4.0 inches (101.6mm) | |
Shipping Depth | 3.0 inches (76.2mm) | |
Shipping Weight | 5.4 lbs (2.4 kgs) | |
Chassis Material | Anodized Aluminum (black) | |
Mounting Options | 1) Pre-installed button mounts 2) Tool-less 4-way mounting brackets | |
ENVIRONMENTAL | ||
Operating Temperature | 30° to 140° F (0° to 60° C) | |
Operating Relative Humidity | 0 - 95% | |
Operating Elevation | 0 - 13,123 ft (4,000 meters) | |
SPECIAL FEATURES | ||
Breaker Reset | Push button on front | |
COMPLIANCE | ||
Certifications | • Tested to conform to UL 60950-1; IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013: CB Scheme • RoHS | |
