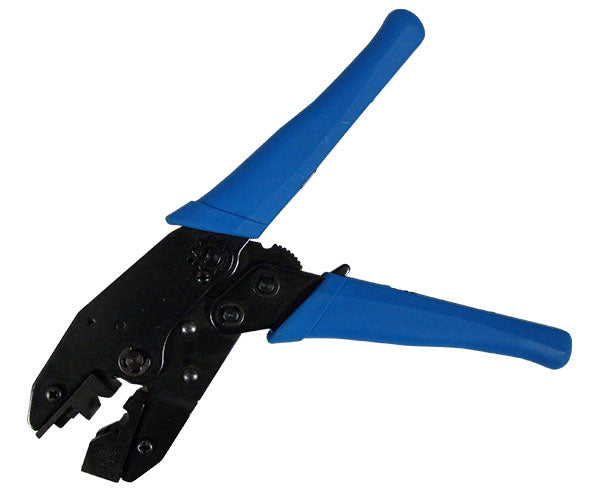

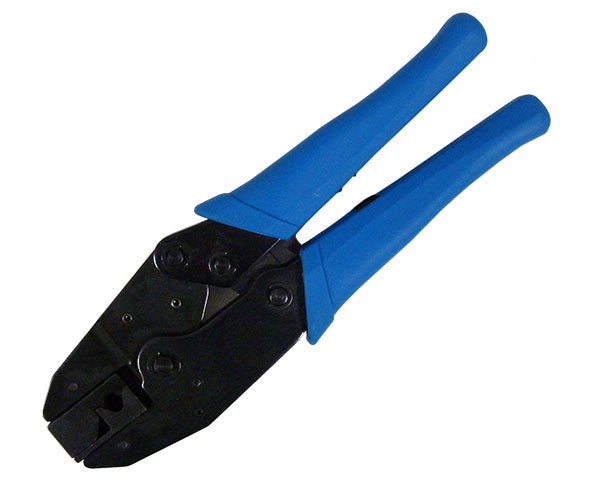

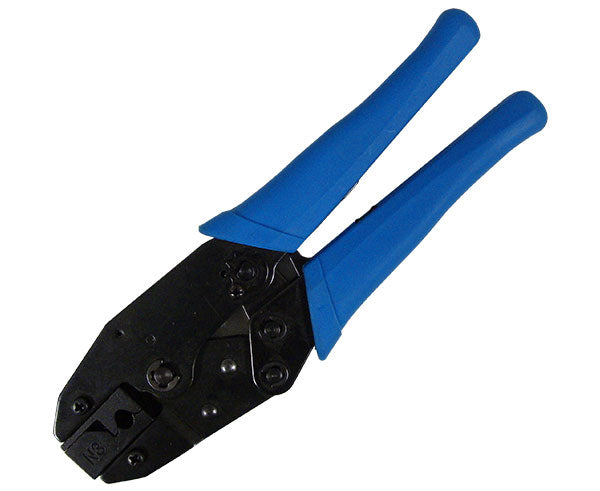

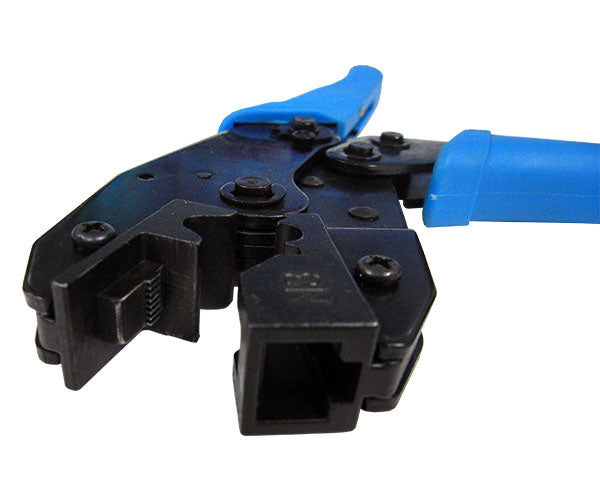

Ratchet Type Crimping Tool for RJ45 Plugs (CAT6/A & CAT7)
The Wire Crimping Tool is designed to work specifically for our CAT6/A and/or CAT7 Shielded RJ45 Modular Plugs. This ratchet style crimping tool is ideal for large diameter CAT6/A and/or CAT7 UTP/STP solid or stranded cable. The blue rubber grip is comfortable for extended usage.
Instructions | |
| Step 1 | Put the plug into the crimp tool in the right position |
| Step 2 | Squeeze the tool to push the contact blades into correct positions |
| Step 3 | Push the metal strain relief down to hold the cable with foil screen or drain wire NOTE: Step 3 to 5 are for the shielded plug with metal strain relief only |
| Step 4 | Place the metal strain relief at the right position |
| Step 5 | Squeeze the tool again for holding the cable tightly and grounding |
| Step 6 | Squeeze the tool again for holding the cable tightly and grounding |
