28194218

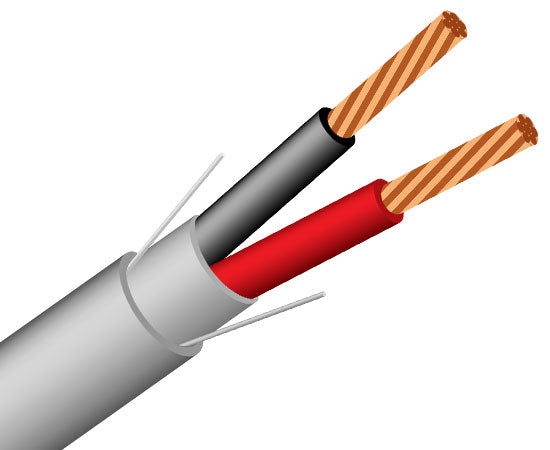

Riser-rated Shielded Security Alarm Cable, 14/2 (19 Strand), CMR Rated, 1,000'. Features stranded bare copper conductors with PVC insulation, twisted configuration, aluminum mylar shielding with a drain wire, and a gray PVC jacket equipped with a rip cord.
Physical Construction | |
|---|---|
| Inner Conductor | Stranded Bare Copper |
| Conductor Size | 14 AWG |
| Insulation | PVC |
| Nominal OD | 5.74mm |
| Outer Jacket Thickness | .38mm |
| Jacket | Low Smoke PVC |
| Jacket Color | Gray |
| Strand | 19 |
Electrical Characteristics | |
|---|---|
| Temperature | -25 °C to 75°C |
| Voltage Rating | 300V |
| Center Resistance | 21.20 (Ω/km) |
Additional Information | |
|---|---|
| Standards | ETL | RoHS | CMR |
| Applications | Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls |
| Jacket Printing | 14 AWG 2C (ETL) CL3R FPLR XXXX FT |
| Important Notes | The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only. |
