Description

FCC Verified logo CE Verified logo RoHS Compliant PoE Capable

Description

What This Product Does

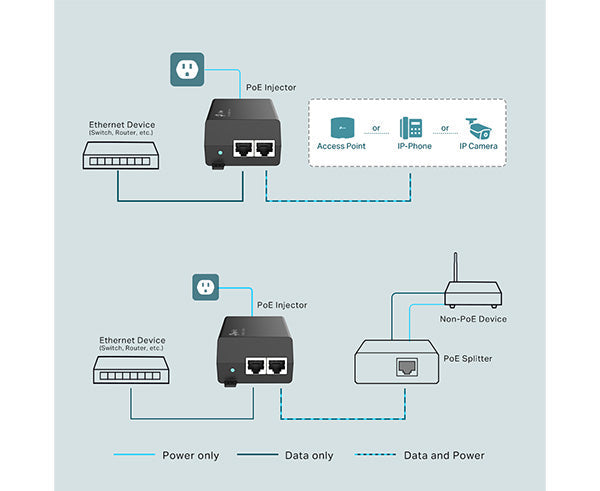

The PoE+ Injector TL-POE260S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Features

2x 2.5Gbps ports ensure faster transmission
Complies with IEEE802.3af/at standards, supplies up to 30W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, requires no configuration
Integrated power supply

Specifications


Standards and Protocols	IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at


Certification	FCC, CE, RoHS
Environment	Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing


Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) 2.5GBASE-T: UTP category 5e or above cable(maximum 100m)
Ports	1 10/10/1Gbps/2.5Gbps RJ45 data-in port 1 10/10/1Gbps/2.5Gbps RJ45 power+data-out port 1 AC socket
Power Consumption	Input: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W)
Basic Function	Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play
LED Indicator	ON: Supplying power normally OFF: No power supply
Dimensions ( W x D x H )	4.9 x 2.3 x 1.4 in (125 x 59 x 37 mm)

What’s In The Box

2.5Gbps PoE+ Injector TL-POE260S
Installation Guide
Power Cord
RJ45 Cable
Wall Mounting Kits
