Shielded CAT6 RJ45 Connector - Easy to Install, OD Under 7.36mm - Ideal for Network Cabling, Data Centers & Home Office Setups

Description

Description

Former Part Number:  CN1-6659-Z6S

Choose the Right RJ45 Connector

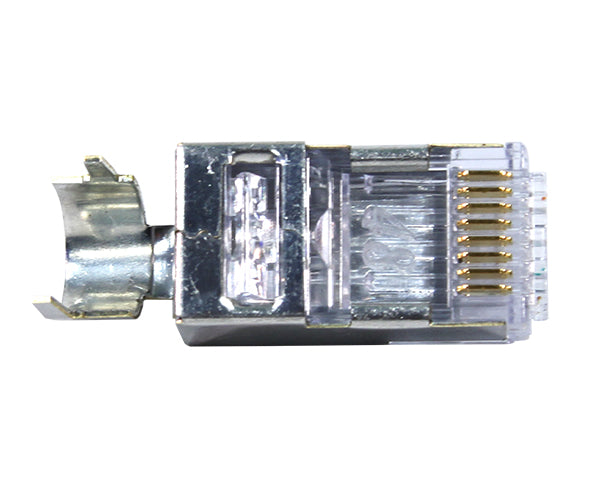

The American Made ezEX™48 Shielded RJ45 Connector for CAT6, CAT6A Cable provides an option for terminating larger diameter twisted pair cables with insulation diameter sizes ranging from 0.043-0.048." It's designed to handle larger-sized conductors while maintaining the simplicity of the EZ™ pass-through design. This facilitates verification of wiring sequence before terminating. It has a high/low staggered design to accommodate larger diameter conductors while maximizing performance. It has a one-piece design, and no bars or liners are required. Compatible with both solid and stranded conductor cable.

Standard RJ45 Issues

The most common issue with traditional pass-through connectors is the incomplete trimming of conductors, leading to voltage shorts & crosstalk. This gets worse as your crimp tool's blade dulls with use.

What Makes ezEX Different?

ezEX-RJ45 connectors feature a molded load bar ensuring conductors are completely trimmed off during the crimping process.

Additionally, ezEX-RJ45 connectors feature a patented hi-lo staggered wire path, reducing near-end crosstalk and allowing for larger diameter conductors.

ezEX-RJ45 connectors are available in a variety of constructions, accommodating both shielded and unshielded cable up to 0.290" diameter & 24- 22AWG conductor sizes.

Looking For RJ45 Accessories?

Please consider us for any of your other networking needs. We've got , many styles of , and other items. Keep in mind, you're going to need a , and we've got 'em.

The  is the original, patented RJ45 crimp system featuring a swappable cassette for either ezEX-RJ45 or EZ-RJ45 pass-through connectors.

Features

Features

• For CAT6 and CAT6A ethernet cable with insulation diameters ranging from .043-.048", 1.09mm - 1.21mm
• Pass-through design for easy verification of wiring sequence
• One-piece design - no bars or liners required
• Hi-Lo stagger to isolate each conductor
• Rated for up to 10 gigabit performance
• Works with solid and stranded cable
• RoHS 2, UL, TIA, TAA, & FCC compliant
• Made in the USA

What’s In The Box

What’s In The Box

• Qty 1 (25 Pack and/or 50 Pack) - ezEX™48 Shielded RJ45 Connector for CAT6, CAT6A Cable
