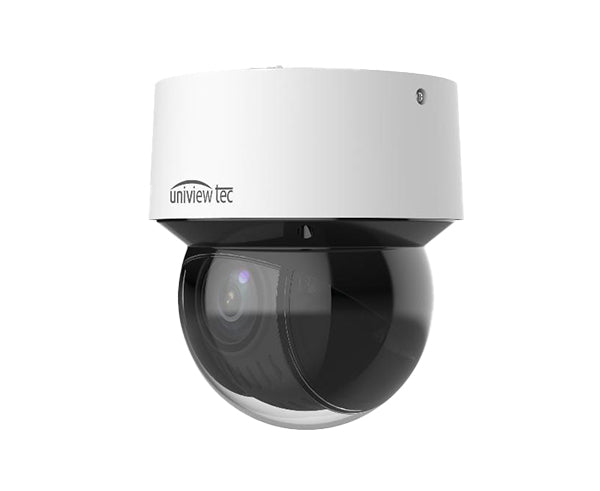

This mini PTZ security camera uses a 1/2.7" CMOS sensor to capture 2592 x 1944 resolution video at 20 fps. Featuring a 5-60mm motorized varifocal lens along with a 355° pan range, a 90° tilt range, and 10x optical zoom, this camera has PoE capability and is NDAA compliant. With highly efficient H.265 video compression, this camera drastically reduces bandwidth and storage requirements. This is a great choice for any security camera system.
Mechanical specifications | |
|---|---|
| Image Sensor | 1 / 2.7” CMOS |
| Resolution | 5MP 2592 ( H ) x 1944 ( W ) |
| Min. Illumination | Color 0.05lux @ F1.2 ( AGC ON ) |
| Signal-to-Noise Ratio | 50dB |
| Power Zoom (mm) | 5-60mm |
| Vertical Rotation | 90° |
| Horizontal Rotation | 355° |
| Infrared Light | Double Array Lamp |
| Infrared Distance | Up to 98 Feet |
| Day/Night Mode | Auto / Day / Night |
| Backlight Mode | Close / Open |
Compression | |
|---|---|
| Video Compression | H.265 / MJPEG / H.265+ |
| Video Bit Rate | 8Kbps ~ 8Mbps |
| Video Transmission | Variable / Constant |
Image | |
|---|---|
| Frame Rate | ( 128Kbps~12Mbps Second ) |
| Resolution | 5MP @ 20FPS |
| BitStream | Double Stream |
| Protocol | ONVIF 2.4 |
| Color Density | Adjustable via Menu |
| Contrast | Adjustable via Menu |
| White Balance | Manual / Automatic White Balance |
| Digital Noise Reduction | 3D Digital Noise Reduction |
Interface | |
|---|---|
| Electronic Shutter | Auto, 1/25s – 1/10,000s |
| Preset Positions | 48 |
| Watch Point | 1 |
| App Control | Supports Mobile App Control |
| Ethernet | RJ-45 (10/100BASE-T ) |
| Connection Port | RJ-45 Port / 12VDC Plug |
| Protocol | ONVIF 2.4 |
Electrical | |
|---|---|
| Input Voltage | 12VDC±10% |
| Power Consumption | 800mA / 3.1W ( Peak 1A/8W ) |
| Operating Temp. and Humidity | -40°F ~ 131°F < 90% RH |
| Storage Temp. and Humidity | -22°F ~ 140°F < 90% RH |
Physical | |
|---|---|
| Dimensions | 4.73 in (W) x 4.49 in (H) |
| Weight | 1.41 lbs |
| Color / Material | White / Metal |
| Lens Cover | High-Intensity Gray - Black High Transparency Plexiglass |
| Weather-Rating | IP67 Rated |
