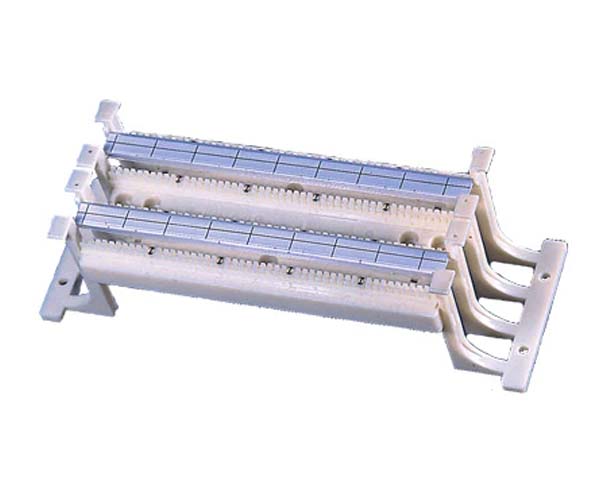

CAT6 Rack Mount Field Termination Kits
The CAT6 110 Field Termination Kits are commonly used as an interconnect between the patch panels and the power outlet boxes. Because these CAT6 110 Field Termination Kits do not have legs, they are able to be mounted flush against the wall or backboard. These wiring blocks are ideal for voice and data applications where a lot of terminations are necessary. The Field Termination Kits are preferred because of the high density capabilities it offers. These Kits allow the possibility to get a higher number of connections in 96, 192 or 288 pair wiring blocks because the connection blocks allow for more terminations.
Connecting Blocks work directly with the CAT6 Field Termination Kits by interconnecting two different cables. One cable may be directly terminated on the wiring block and then covered and secured by a connection block. The IDC terminals on top the connection blocks and the terminals on the bottom of the connection blocks allow for connectivity between the two cables. Connecting Blocks are typically found in 3 Pair, 4 Pair, or 5 Pair connector clips and can significantly improve the number of connections the wiring block can hold.
The Field Termination Kit requires proper labeling and includes label strips and holders. It is extremely beneficial to label the cables and terminations because of the high density capabilities. Dynacom's CAT6 Field Termination Kit feature legs which allow the wiring block to be mounted directly on to the wall. The CAT6 Wiring Block from Dynacom does not require a bracket in order to mount.
Additional Related Items
To complete your network, we have all the products you need, with full end to end solutions for Telco voice systems. We carry a wide array of , , and.
If you are looking to quickly and easily install your CAT3 network or voice system, we have , , and.
We also carry Telco tools and equipment for testing the integrity of a CAT3 network such as , and .
We also carry a large assortment of items that work with Telco voice systems such as: , Bridge Clips, Modular Cable, and other accessories that will help make your installation fast, smooth and organized.
| Temperature Range | |
|---|---|
| Storage | -40º to +70º C |
| Operation | -10º to +60º C |
| Relative Humidity (Operational) | Maximum Noncondensing 93% |
| Electrical | |
|---|---|
| Insulation Resistance | 500 MΩ min. @ 100V d.c |
| Dielectric Withstanding Voltage | 1000V RMS @ 60Hz for 1 min |
| Spring Wire Contact Resistance | 20 mΩ Max |
| IDC Contact Resistance | 2.5 mΩ Max |
| Mechanical | |
|---|---|
| Total Contact Force | 800 Grams for A 8 Wire Leads Minimum |
| Retention | 50N (11 Ibf) for 60s ± 5s |
| Insertion / Extraction Life | 750 Cycles Minimum |
| IDC Wire Gauge | 22 ~ 26 AWG |
| Physical | |
|---|---|
| Housing / Bezel | High-Impact, Flame-Retardant Plastic, UL-94V0 |
| Spring Wire | Phosphor Bronze Alloy Plated with 50 Micro-inch of Gold Over 70~100 Micro-inch of Nickel |
| IDC | Brass Plated with 100 Micro-inch of Sn |
Telco Block Accessories
Telco blocks are utilized to connect phone systems to data networks. There are two popular forms of telco blocks: the 66 block and the 110 block. The 66 block is quite common in modern phone systems, as they simplify connecting multiple phone lines. The 66 block is also referred to as B-blocks, M-blocks, and as split-50 blocks. We also have Cable Distribution Spools, or mushroom posts for managing your cross connect wire. It is designed for mounting onto walls or other surfaces to help support and guide your cross connect wire. Our cable distribution spools are also ideal for CAT3 cable for telephone applications.
To learn more about our Telco Block Accessories please visit our overview page. Our CAT6 110 Field Termination Kits can be combined with a wide array of products such as:
