69751673

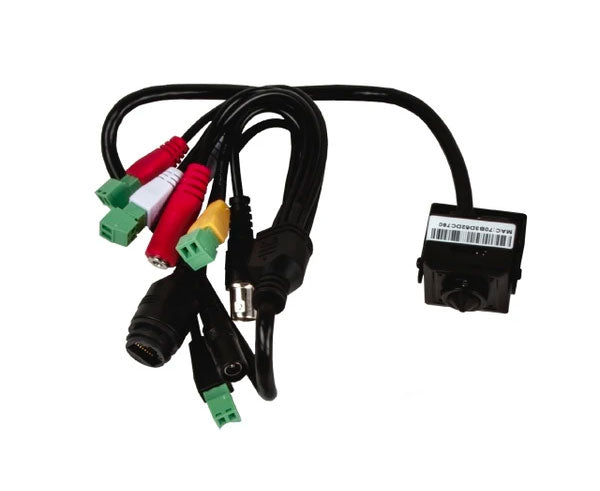

This network pinhole camera comes with a 1/2.8” Progressive Scan CMOS 3.7mm fixed lens, and a 2.8mm fixed lens (Optional). 2MP Resolution with multiple stream capabilities, WDR, 3D DNR & built-in Micro SD slot.
Thermal Camera
Mechanical specifications | |
|---|---|
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H)×1080(V) |
| Electronic Shutter | 1/5-1/20,000s |
| Min. illumination | Color: 0.001Lux @(F1.2, AGC ON) B/W: 0.0001Lux @(F1.2, AGC ON) |
| S/N Ratio | 55dB |
| Day/Night | 5.0~50mm MotorizedColor/B&W |
| Wide Dynamic Range | Ture WDR >120dB |
Lens | |
|---|---|
| Lens Type | Pinhole |
| Iris | Fixed Iris |
| Focal Length | Focal Length |
| F Number | F2.0 |
| Angle of View | 84° |
| Focus Control | Fixed |
Video | |
|---|---|
| Compression | H.265, H.264, MJPEG |
| Max. Resolution | 1080P(1920×1080) |
| Streaming Capability | 3 Streams |
| Stream / Frame Rate | Stream1:1920×1080/1280×720 @50/60fps Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps Stream3: VGA/CIF/QVGA @25/30fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Stream1: 200kbps~12000kbps Stream2: 100kbps~6000kbps Stream3: 100kbps~3000kbps |
| Image Enhancement | HLC / BLC / Anti-shake / Defog / WDR (>120dB) |
| White Balance | Support |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D DNR |
| Mirror | Support |
| Aisle Mode | Support |
| Region of Interest | Support |
| Motion Detection | Support |
| Noise Reduction | Support |
Audio | |
|---|---|
| Compression | G.711, RAW_PCM |
| Bit Rate | 8kbps, 16kps, 64kbps |
Network | |
|---|---|
| Protocols | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP |
| Interoperability | ONVIF, SDK, CGI |
| Streaming Method | Unicast |
| Max. User Access | 10 Users |
| Web Viewer | <IE11, Chrome, Firefox |
| Smart Phone | IOS, Android |
Interface | |
|---|---|
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio | 1ch Input, 1ch Output |
| Alarm | 2ch Input, 1ch Output |
| RS485 | Support |
| CVBS Output | Support |
| Reset Button | Support |
| Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128G |
Intelligence | |
|---|---|
| IVS | Perimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad |
Electrical | |
|---|---|
| Power Supply | DC12V |
| Power Consumption | 3W(MAX) |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (-14°F ~ 122°F ) Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F) |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | N/A |
| Certifications | CE / FCC |
| Casing | Metal |
| Dimensions | 1.48"x 1.33" x 1.83" |
| Net Weight | 6.34 |
