For a more complete list of compatibility with the CAT5E Inline Coupler Extension, click on the Additional Information tab.

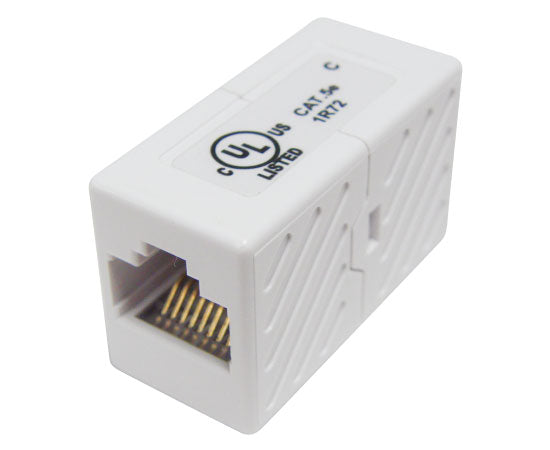

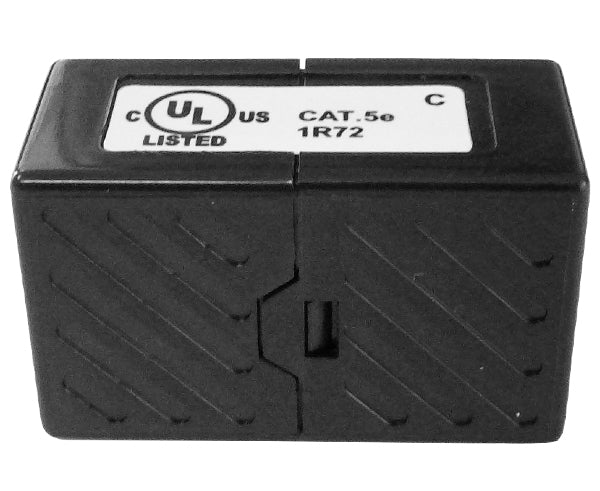

Our CAT5E Slim Inline Coupler Extension are engineered with PCB technology, phosphor bronze IDC contacts, gold plated prongs, and a fire-retardant plastic housing. The CAT5E Slim Coupler line is engineered to simplify the connection helping you save time and money. Simply plug in your patch cables and/or RJ45 terminated CAT5E cables and your done.
Because we take great pride in our quality control procedures and our commitment to quality our CAT5E Slim Inline Coupler Extension is subject to UL standards and is UL Listed. Our CAT5E Slim Coupler also meet all requirements for EIA/TIA and also inspected and tested to comply with stringent transmissions and safety standards.
To complete your CAT5E network we carry a full end to end solution including , , , , , and . We also have a large assortment of , and that will help make your installation fast, smooth and organized. If you have any questions, feel free to give us a call.
| Coupler Housing: | ABS high-impact UL 94V-0 thermoplastic |
| Spring Wire: | Phosphor Bronze 5210R temper wire, T=0.3mm, 50u "Gold over 100u" Nickel undercoat |
| Contact Holder: | PBT high-impact UL 94V-0 thermoplastic |
| Height: | 0.64 inches |
| Width: | 0.56 inches |
| Depth: | 1.17 inches |
| Insertion Life: | 750 Mating Cycles with FCC Compliant RJ-45 Plug |
| Contact Force: | 100 Grams with FCC Compliant RJ45 Plug |
| Plug Retention Force: | 11 LBF Min |
| Operating temperature: | -10ºC to 60ºC / 14ºF to 140ºF |
| Storage Temperature Range: | -40ºC to 68ºC / -40ºF to 154ºF |
| Humidity: | 10% ~ 90% RH |
| Insulation Resistance: | 500 MΩ |
| Dielectric Withstanding Voltage: | 1000 V |
| DC Current Rating: | 1.5 Amps |
| DC Resistance: | 0.1Ω |
| Contact Resistance: | 20mΩ |
Our CAT5E Keystone Couplers are compatible with:
