10-Port Gigabit Ethernet Switch with 8 PoE+ Ports - Smart Managed Network Switch for Home Office, Gaming, and Business Networking

Description

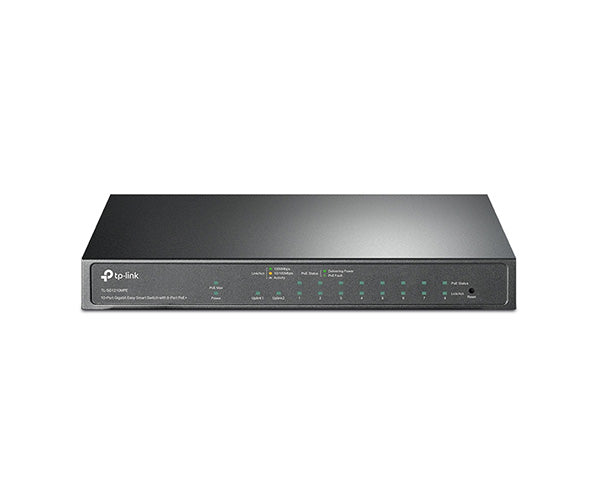

10-Port Gigabit Easy Smart Switch with 8-Port PoE+

The TL-SG1210MPE 10-Port Gigabit PoE+ Compliant Managed Network Switch is compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV. Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 123W PoE power budget for the eight Gigabit PoE+ ports means it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Multiple Application Scenarios

The TL-SG1210MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

Dedicated 8 PoE+ Ports (123 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 123 W PoE power budget* for the 8× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Easy to Use

1. Plug In

2. Connect Devices

3. Enjoy

Value-Added Features Bring Unexpected Experiences

• QoS for a Lag-Free Experience - Ensures smooth traffic for latency-sensitive applications, such as voice and video

• IGMP Snooping for Multicast Optimization - Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

• VLAN for Security - Helps to create network with higher security and better overall performance by dividing network into smaller groups

Making Management Easy

TL-SG1210MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1210MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Multiple Features Guarantee Stable Operation

• System Self-Healing with PoE Auto Recovery - The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

• Intelligent Power Management to Prevent Power Overload -Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 123 W. This protects the device from power overload operation.

• Great Compatibility with PD Detection - Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SG1210MPE are protected by a high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.

Features

Features

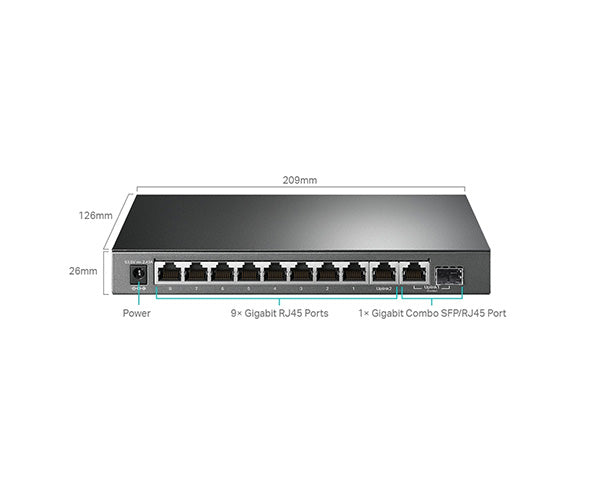

• 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port
• Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
• Supports PoE power up to 123 W for all PoE ports*
• Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and Easy Smart Configuration Utility simplify configuration
• Fanless design lowers energy consumption and eliminates operating noise

Specifications

Specifications

What's In The Box

What's In The Box

• TL-SG1210MPE
• Power Adapter
• Installation Guide
• Rubber Feet
