1000FT CAT6 UTP Bulk Ethernet Cable - Solid Copper CM, 23 AWG - High-Speed Network Cable for Home Office, Server Rooms & Data Centers

Description

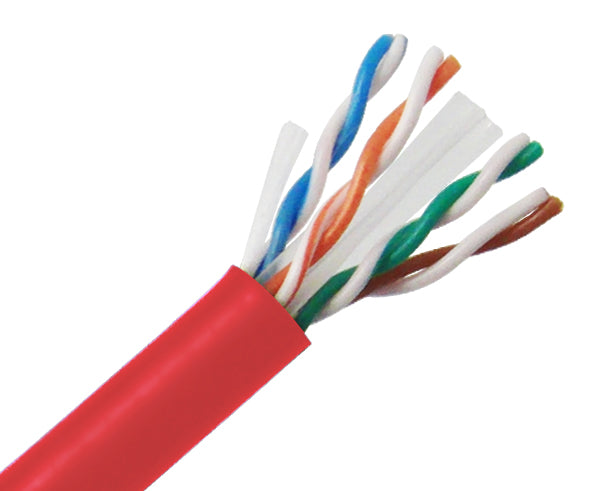

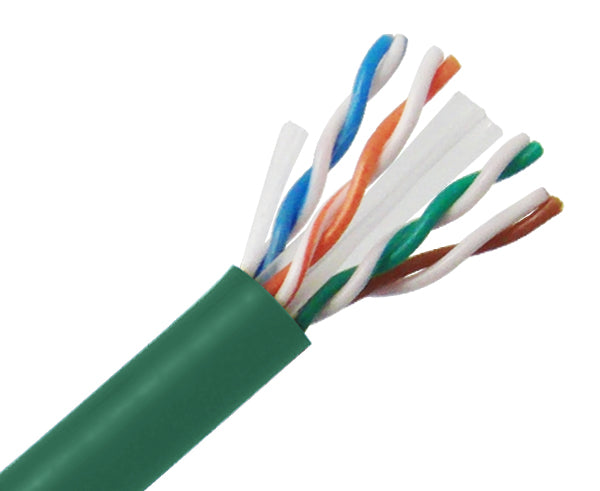

CAT6 UTP Bulk Ethernet Cable, Solid Copper CM, 23 AWG 1000FT

Our CAT6 CM Cable offers the optimal solution for indoor voice, data, video, and security networking. Whether for your home, office, or campus, we provide the right network solution.

Specifically designed for reliable indoor installations, this CAT6 CM Rated Ethernet Cable features 8 conductors (4-pairs) of solid bare copper with high-density polyethylene (HDPE) insulation and a PVC CM-rated RoHS Compliant jacket. Our ETL Listed Category 6 CM Rated Cable is tailored for indoor LAN applications. Perfect for installation runs in walls or non-plenum areas. Tested up to speeds of 600MHz.

In our dedication to quality bulk Ethernet cables, our cable meets and/or exceeds CAT6 ANSI/TIA-568.2-D standards. Manufactured to current CAT6 guidelines, verified by outside standards organizations including ETL, ensuring ETL Listed and RoHS Compliant cables.

Technical Diagram

Cat 6 Bulk Cable Options

CAT6A Bulk Cable Options

Features

Features

• High-Performance Data Communications Cable
• Category 6 CM-Rated Cable
• Suitable for 600MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet, and 155Mbps TP-PMD/CDDI
• Designed for Indoor CM Rated Installations
• Category-6 Unshielded Twisted Pair (UTP) Cable
• 4-Pair Easily Identified Color Striped Pairs
• 23 AWG Solid Bare Copper Conductors
• Excellent Attenuation and Crosstalk Characteristics
• ETL Verified
• ANSI/TIA-568.2-D, RoHS Compliant
• Sequential Length Markings on Jacket
• Supplied in a 1000' Pull Box
• Available in Multiple Colors

Specifications

Specifications

Spec Sheet

Additional Information

Additional Information

Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.

CMR: The 'R' in CMR is for 'Riser'. Riser-type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.

CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin-producing characteristics.

CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.

To learn more about our CAT6 CM Rated Ethernet Cable please visit our product overview page.

Our CAT6 CM Rated Ethernet Cable is compatible with our:

• CAT6 Patch Cables
• CAT6 Modular Plugs
• CAT6 Keystone Jacks
• Blank Patch Panels
• CAT6 Patch Panels
• Wall Plates
• Tools
• Testers
• Cable Management Accessories

What’s In The Box

What’s In The Box

• Qty 1 - 1000FT pull box of CAT6 Unshielded CM Rated Ethernet Cable
