CAT6/A ezEX 44 Shielded RJ45 Connector - 50 Pack for Ethernet Cables Under 7.75mm OD - Ideal for Network Installations, Data Centers & Home Office Setups

Description

Former Part Number: CN1-6758-Z6S

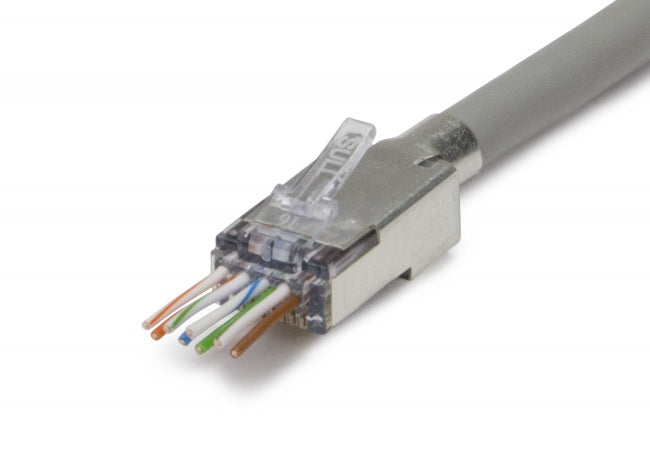

CAT6/A ezEX 44 Shielded RJ45 Connector

Choose the Right RJ45 Connector

The American Made ezEX™44 RJ45® Shielded CAT6, CAT6A Connectors provide an option for terminating larger diameter twisted pair cables with insulation diameter sizes ranging from 0.039-0.044." It's designed to handle larger-sized conductors while maintaining the simplicity of the EZ™ pass-through design. This facilitates verification of the wiring sequence before terminating. It has a high/low staggered design to accommodate larger-diameter conductors while maximizing performance. It has a one-piece design, no bars or liners are required. Compatible with both solid and stranded 24 - 22 AWG cable.

Standard RJ45 Issues

The most common issue with traditional pass-through connectors is the incomplete trimming of conductors, leading to voltage shorts & crosstalk. This gets worse as your crimp tool's blade dulls with use.

What Makes ezEX Different?

ezEX-RJ45 connectors feature a molded load bar ensuring conductors are completely trimmed off during the crimping process.

Additionally, ezEX-RJ45 connectors feature a patented hi-lo staggered wire path reducing near-end crosstalk and allowing for larger diameter conductors.

ezEX-RJ45 connectors are available in a variety of constructions, accommodating both shielded and unshielded cable up to 0.290" diameter & 24-22AWG conductor sizes.

Looking For RJ45 Accessories?

Please consider us for any of your other networking needs. We've got , many styles of , and other items. Keep in mind, that you're going to need a , and we've got them.

The  is the original, patented RJ45 crimp system featuring a swappable cassette for either ezEX-RJ45 or EZ-RJ45 pass-through connectors.

Features

Features

• For CAT6 and CAT6A Ethernet Cable with Insulation Diameters Ranging From .039-.044", .99mm - 1.11mm
• Works with Shielded Solid and Stranded 24 - 22 AWG Cable
• Pass-Through Design for Easy Verification of Wiring Sequence
• One-piece Design - no Bars or Liners Required
• Hi-Lo Stagger to Isolate Each Conductor
• Rated for up to 10 Gigabit Performance
• RoHS 2, UL, TIA, TAA, & FCC Compliant
• Made in the USA

Specifications

Specifications

What’s In The Box

What’s In The Box

• Qty 1 (50 Pack)- ezEX™44 Shielded RJ45 Connector for CAT6 & CAT6A Cable
