 | Condition is new and is sold as is. |

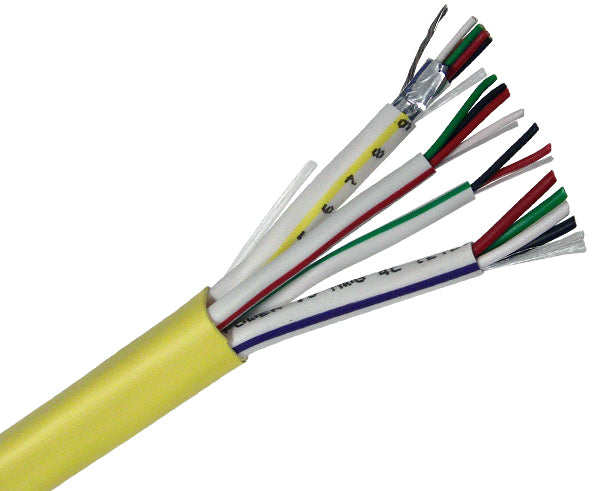

Our Access Control Composite Cable has been designed for easy installation on a single pull and to meet the requirements of the most demanding Building Access Control Systems. This composite cable includes four components required for card readers, door contacts, locking power and retinal scanners in commercial buildings, distribution centers, manufacturing facilities, government buildings and educational campuses.
Our access control cables are installer friendly allowing for easy installation. With multiple cables under one jacket, time and money is saved during setup, pulling and termination. This multi-conductor cable includes one 18/4 AWG, 22/2 AWG, one 22/4 AWG, and one 22/3 AWG shielded conductor.
Our access cables also include print legends to allow for quick identification of each cable's application. Time is precious and the convenience of the cables at installation makes our access cables the choice for multiple access control applications.
A broad range of applications exist for access control composite cabling. It is widely used with keypad/card readers, retinal scanners, door contact, request to exit and lock power device connectivity in commercial settings such as schools, universities, hospitals, airports, government buildings, train and transportation centers, stadiums, and arenas. Since this access control cable has multiple conductors under one jacket, the preparation, set up, and termination time is shorter.
A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.
Technical Specs: | |
|---|---|
| Conductor: | Stranded Bare Copper |
| Insulation: | LS PVC |
| Jacket: | Yellow LS PVC |
| Standard Length: | 500 Foot & 1000 Foot Reels |
| Rating: | NEC Artical 800 Type CMP/CL2P RoHS Compliant |
| Overall Nominal O.D.: | .480 |
| Component # | Conductor Size | # of Conductors | Conductor Colors | Nominal O.D. | Insulation Thickness | Jacket Color |
| 1 | 18 AWG | 4 Cond | White, Red, Black, Green | .183 | .008 | White/Purple Stripe |
| 2 | 22 AWG | 3 Pairs Shielded Cond | Black/Red White/Green Brown/Orange | .168 | .007 | White/Yellow Stripe |
| 3 | 22 AWG | 2 Cond | Black, Red | .128 | .007 | White/Green Stripe |
| 4 | 22 AWG | 4 Cond | White, Black, Red, Green | .138 | .007 | White/Red Stripe |
