6 Strand Hybrid Fiber Optic Cable - Single Mode 9/125μm, Indoor/Outdoor Rated, OFNR Certified with 2x 14AWG Stranded Conductors - Perfect for Data Centers, Telecom Networks & Industrial Applications
6 Strand Hybrid Fiber Optic Cable - Single Mode 9/125μm, Indoor/Outdoor Rated, OFNR Certified with 2x 14AWG Stranded Conductors - Perfect for Data Centers, Telecom Networks & Industrial Applications
6 Strand Hybrid Fiber Optic Cable - Single Mode 9/125μm, Indoor/Outdoor Rated, OFNR Certified with 2x 14AWG Stranded Conductors - Perfect for Data Centers, Telecom Networks & Industrial Applications

6 Strand Hybrid Fiber Optic Cable - Single Mode 9/125μm, Indoor/Outdoor Rated, OFNR Certified with 2x 14AWG Stranded Conductors - Perfect for Data Centers, Telecom Networks & Industrial Applications

$0.45 $0.82 -45% OFF

Free shipping on all orders over $50

7-15 days international

17 people viewing this product right now!

30-day free returns

Secure checkout

46834265

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

Description

RoHS CompliantISO 9001

(We do not offer credits or returns for this item.)

This fiber cable is priced per foot.

Note: Orders over 1200ft must ship freight and requires a shipping quote. To request a shipping quote email us or call us

If you would like to inquire about our custom fiber cable options such as terminated ends, or pulleyes please call or email us.

Description

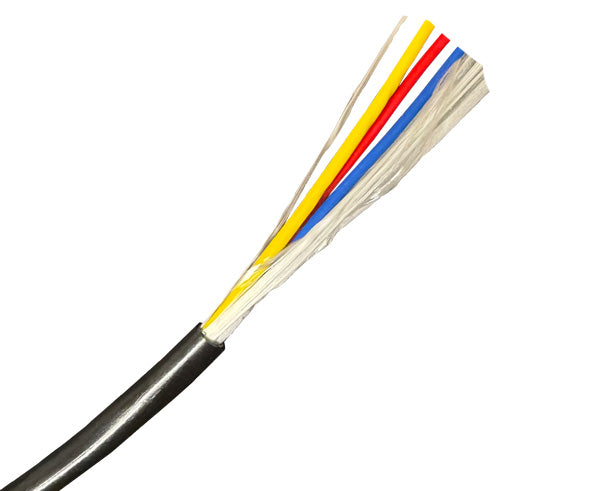

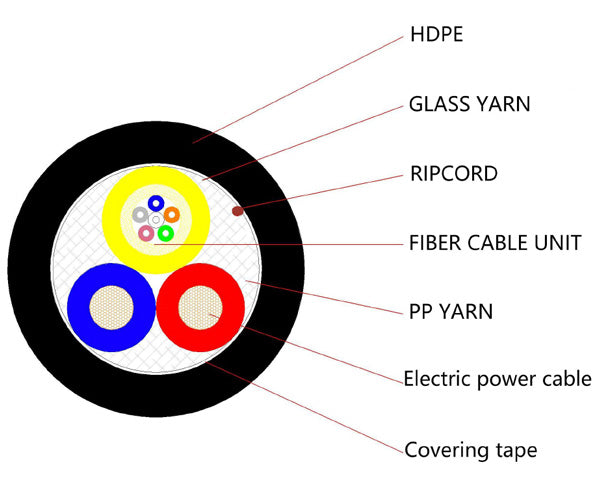

6-Strand Hybrid Single Mode Fiber Cable, Indoor/Outdoor, OFNR, HDPE Jacket

This 6-Strand Hybrid Fiber Optic Cable features single-mode 9/125 fibers and two 14 AWG stranded copper conductors, making it ideal for both data and power transmission. Designed for indoor and outdoor applications, it is OFNR-rated for safe use in riser spaces, providing durability and performance in demanding environments.

Features

Features

  • Suitable for both indoor and outdoor applications
  • 6-strand single-mode 9/125μm
  • HDPE jacket offers robust protection
  • FRP (Fiber Reinforced Plastic) strength member with a diameter of 1.5mm.
  • 2 x 14 AWG stranded power conductors
  • Also available in 16 AWG

Specifications

Specifications

  • Cladding Diameter: 125.0+/-0.7μm
  • Cladding Non-Circularity: ≤1.0%
  • Core-Clad Concentricity Error: ≤0.6μm
  • Coating Diameter: 242+/-7μm
  • Coating-Cladding Concentricity error:≤12 μm
  • Cable Cutoff Wavelength: ≤1312 nm+/-12μm
  • Attenuation (Maximum):
    ≤ 0.4 dB/km @1310nm
    ≤ 0.4 dB/km @1383nm
    ≤ 0.3 dB/km @1550nm
    ≤ 0.3 dB/km @1625nm
