Some items may require minimum order quantities which can be changed in your shopping cart.

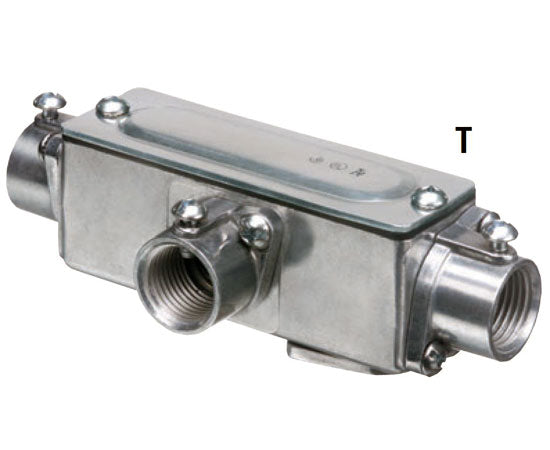

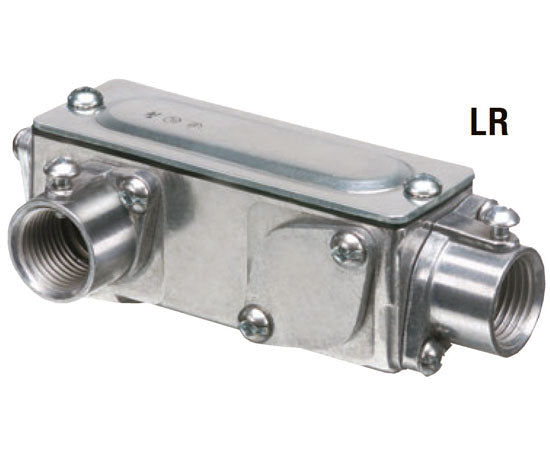

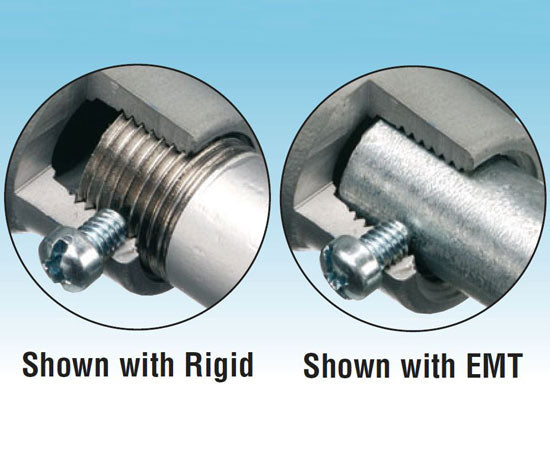

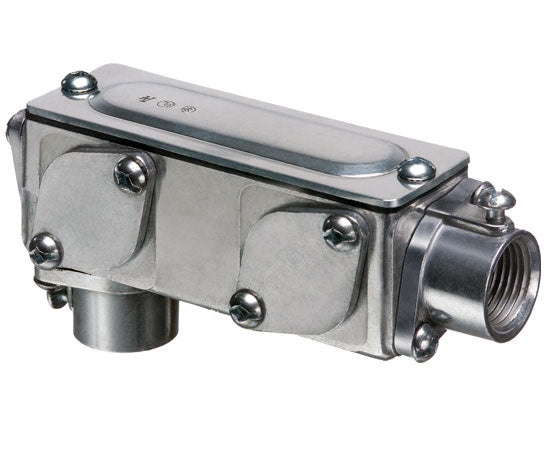

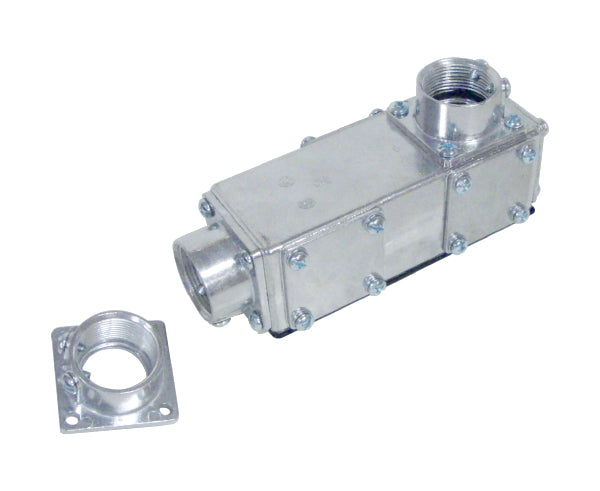

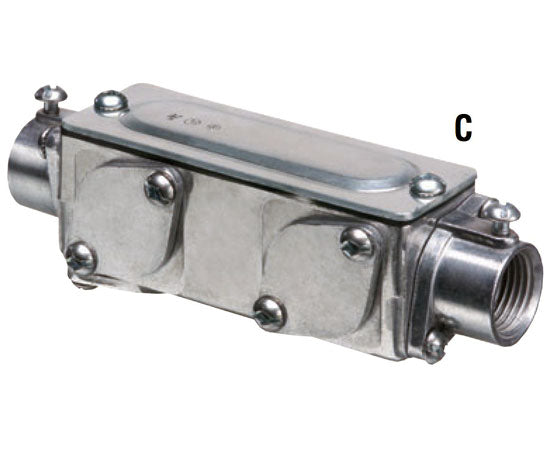

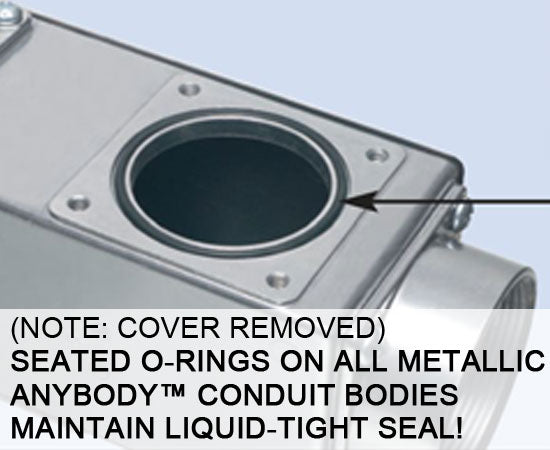

Our AnyBODY™ Aluminum Die-Cast Conduit is made from copper-free aluminum die-cast, it ships as an LB, but converts to a T, LL, LR or C by switching the blank plates and threaded flanges to create the style you need. This product includes flanges that are threaded for rigid and includes set-screws for EMT. The included set-screws may be used for rigid conduit, but are no necessary. This product is listed rain-tight with rigid and concrete-tight for EMT. This product can also be used for EMT to Rigid.
This product meets NEC 2011 314.16 (c) (2) for Conduit Bodies with Splices, Taps or Devices. Only those conduit bodies that are durably and legibly marked by the manufacturer with their volume shall be permitted to contain splices, taps or devices. The maximum number of conductors shall be calculated in accordance with 314.16 (B). Conduit bodies shall be supported in a rigid and secure manner.

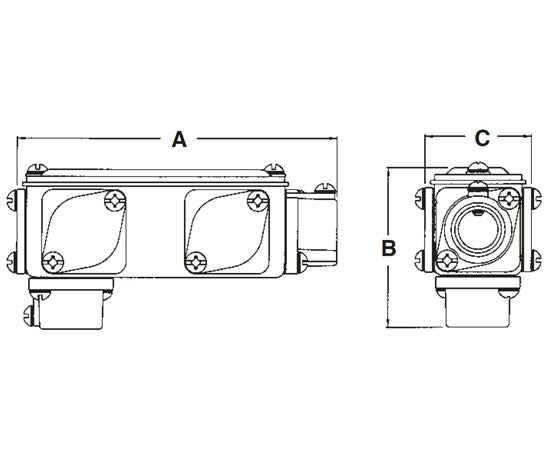

| Part Number | Trade Size | Cubic Inches | Dim A | Dim B | Dim C |
|---|---|---|---|---|---|
| 930 | 1/2" | 4.80 | 10875 | 3.9375 | 7.375 |
| 931 | 3/4" | 7.80 | 10.875 | 3.9375 | 7.375 |
| 932 | 1" | 11.50 | 11 | 3.9375 | 10.875 |
| 933 | 1-1/4" | 32.30 | 3.5 | 5.25 | 10.25 |
| 934 | 1-1/2" | 32.30 | 3.5 | 5.25 | 10.25 |
| 935 | 2" | 69.50 | 3.5 | 5.25 | 10.25 |
| Part Number | Trade Size | Cubic Inches | Dim A | Dim B | Dim C |
|---|---|---|---|---|---|
| 936 | 2-1/2" | 175.50 | 6.5 | 19.5 | 6.5 |
| 937 | 3" | 175.50 | 6.5 | 19.5 | 6.5 |
| 938 | 3-1/2" | 334.00 | 6.5 | 19.5 | 6.5 |
| 939 | 4" | 334.00 | 6.5 | 19.5 | 6.5 |
