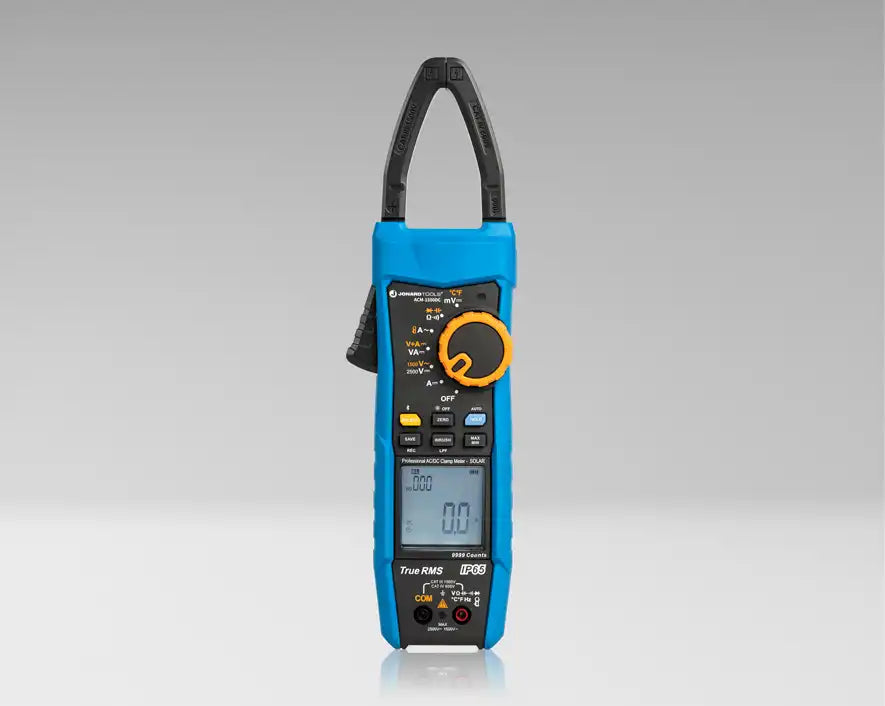

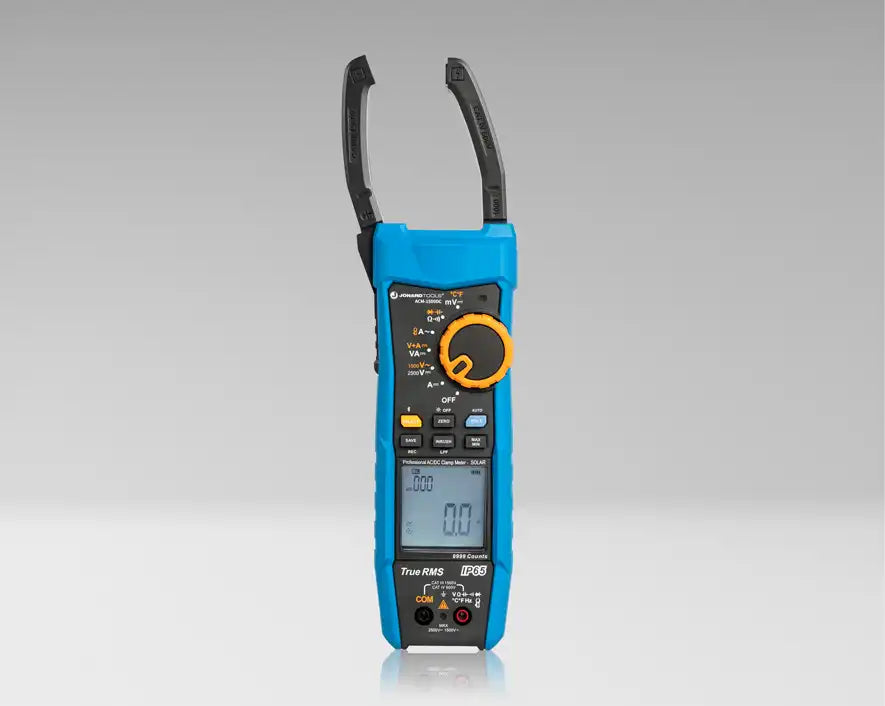

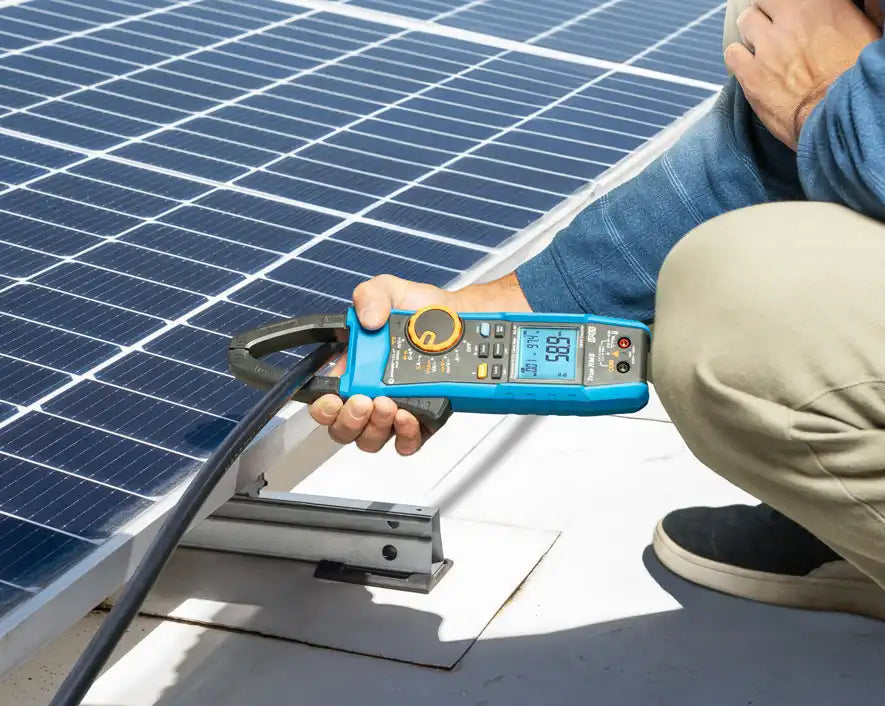

Elevate your high voltage DC work with the Jonard ACM-1500DC CAT III 1500 V True-RMS Clamp Meter. This versatile device is tailor-made for professionals working in solar arrays, wind power farms, electric railways, data centers, and uninterruptible power supplies. It excels in precision, measuring up to 2500 V DC, 1500 V AC, and up to 999.9 A DC or AC through the clamp jaws. The slim jaw design ensures access to even the most congested combiner boxes, and the test leads are CAT III 1500 V DC rated for peace of mind.
| Max AC Current | 999.9 A |
| Max DC Current | 999.9 A |
| Max AC Voltage | 1500 V |
| Max DC Voltage | 2500 V |
| Power (DC) | 999.9 kVA / 2500 kVA |
| Resistance | 999.9 Ω / 9.999 kΩ / 99.999 MΩ |
| Capacitance | 100.0 µF / 1000 µF |
| Temperature | -40 °C ~ 400 °C / -40 °F ~ 752 °F |
| Jaw Opening | 35 mm |
| Overvoltage Category | CAT III 1500 V / CAT IV 600 V |
| Bluetooth App | BT 5.0 |
| Inrush Current | |
| PEAK | |
| LPF | |
| True RMS | |
| Dimensions | 12.25 in x 5.2 in x 2.5 in (31.12 cm x 13.21 cm x 6.35 cm) |
| Weight | 2.04 lb (924.344 g) |
| UPC # | 810132435454 |
