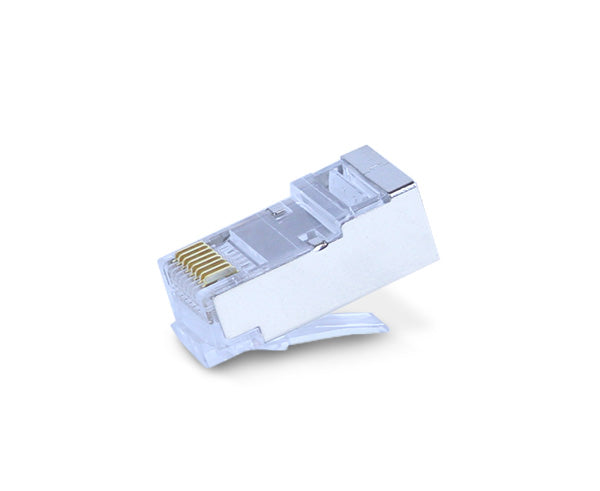

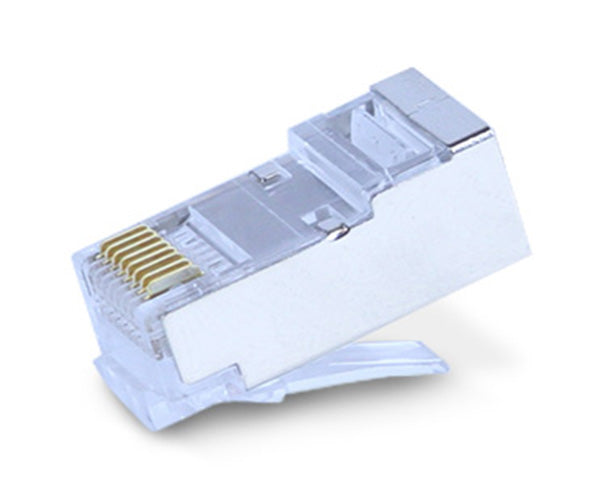

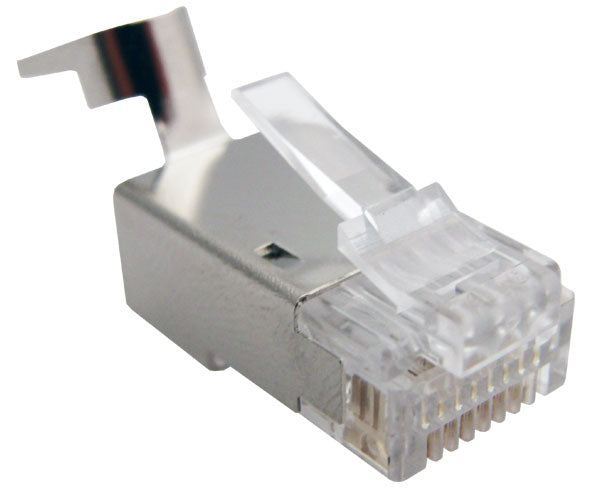

Shielded CAT6 RJ45 Ethernet Connector - OD Under 8.0mm for High-Speed Network Cabling & Server Installations

Description

Former Part Number: CN1-021-8C6SH

 Please use  when terminating this plug. These modular plugs use a directional insert, please see the Additional Information tab below for instructions.

Choose the Right RJ45 Connector

Connectivity products should be on par with the Ethernet cable. We hold our CAT6 RJ45 modular plugs to high standards with our customer and their network in mind. These RJ45 Ethernet connectors are designed to work specifically with CAT6, and CAT6A cable. Gold plated and work with solid and stranded cable. They have 8 pins and 8 conductors (8p8c). The inserts are also included as part of the design. The wire alignment insert provides an efficient cable assembly. Over time this will save time and money on any job.

Also featured on this RJ45 Ethernet connector is a slim strain relief and shielding. The slim strain relief prevents snag tears and maintains the quality of the cable. Shielding your network prevents majority of signal loss and electromagnetic interference (EMI).

Please consider us for any of your other networking needs. We've got , many styles of , and other items. Keep in mind, you're going to need a , and we've got em. Thank You.

Features

Features

• Ideal for Creating Superior High Performance CAT6A Patch Cables in 10Gigabit Ethernet Applications Where High Density Routers and Switches are Employed
• Meets CAT6A Performance Requirements Per ANSI/TIA-568-B.2-10
• Robust Shield Termination and Strain Relief Allow for One-step Termination Process
• Optional Slim Line Boot Features Integrated Strain Relief and Latch Protection
• 50 Micro-inch Gold Plated Contacts
• Transparent Housing for Easy Conductor Alignment
• 8 Pins and 8 Conductors (8p8c)
• Fits 26 and 22 AWG Cable
• Supports Solid/Stranded Cable
• Fits Cables With a Jacket Under 8.0mm OD
• Copper Alloy Shielding
• UL 94-V0 Plastic Components
• RoHS Compliant
• Operation Temperature: -20°C - +50°C
• Fits an Insulation Diameter of 1.05mm - 1.15mm

Specifications

Specifications

Termination Guide

RJ45 Termination Guide: Step by Step Walkthrough

What’s In The Box

What’s In The Box

CN1-7881-8C6SH

• Qty 1 (25 Pack) - Shielded RJ45 Connector

CN1-7882-8C6SH

• Qty 1 (50 Pack) - Shielded RJ45 Connector

CN1-7901-8C6SH

• Qty 1 (100 Pack) - Shielded RJ45 Connector
