Description

Made in USA UL Listed

(We do not offer credits or returns for this item.)

For volume quotes or to inquire about our custom fiber cable options such as terminated ends, pulleyes, and custom cut lengths, please call or email us.

Please call for shipping quote

Description

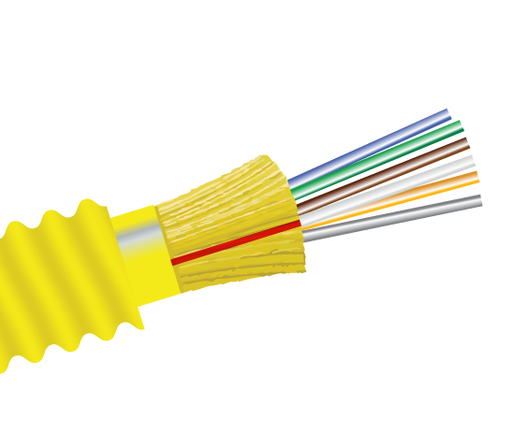

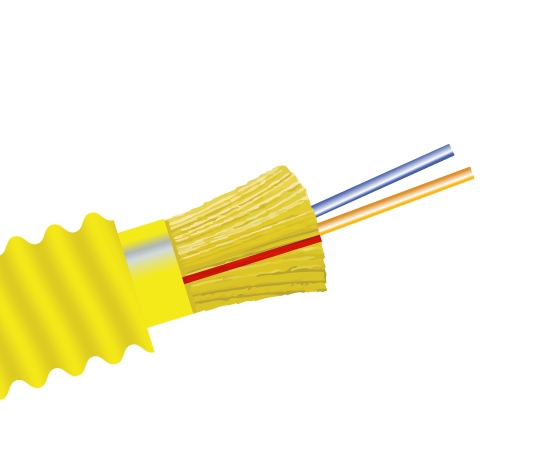

Single Mode, 9/125, Aluminum Interlocking Armored Distribution Cable, OFCR Riser Rated, Indoor/Outdoor, Price Per Foot

This armored riser fiber cable is ideal for industrial and other installations requiring a metallic armor and has a greater flexibility than standard corrugated steel-armored (CST) cables. The interlocking preloaded armor may eliminate the need for conduit, reducing installation costs. The interlocking armor can be easily removed leaving an intact inner riser rated cable for installation into building risers or from floor to floor.

Applications
  • Ideal for industrial and other installations requiring a metallic armor
  • Interlocking preloaded armor may eliminate the need for conduit, reducing installation costs

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with and

Features

Features

  • UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building risers or from floor to floor
  • Aluminum interlocking armor with PVC overjacket
  • Interlocking armor can be easily removed leaving an intact inner cable
  • Greater flexibility than standard corrugated steel armored (CST) cables
  • Ideal for locations that require conduit for cable protection
  • Wide operating temperature of -40™C to +85™C

Specifications

Laser Ultra-Fox™ Fiber Performance

Fiber Code

SLX

Industry Standard Designation

Low Water Peak

Single-Mode

ITU-T G.652.D

Core/Cladding Diameter (μm)9/125
Wavelength (nm)1310/1550
Maximum Cabled Attenuation (dB/km)0.5/0.5
Primary Coating Diameter (μm)245
Secondary Buffer Diameter (μm)900
Zero Dispersion Slope (ps/nm2-km)0.092
Proof Test Level (kpsi)100

Installation and Operating Characteristics

Inner Cable

 InstallationOperating
Max Tensile Load3,000 N (670 lbs)1,000 N (220 lbs)
Min Bend Radius13.4 cm (5.3 in)8.9 cm (3.5 in)

Outer Cable

 InstallationOperating
Max Tensile Load1,350 N (300 lbs)400 N (90 lbs)
Min Bend Radius33.4 cm (13.1 in)25.1 cm (9.9 in)

Mechanical and Environmental

 Inner CableEntire Cable
Impact Resistance EIA/TIA-455-25A1,500 Impacts20 Impacts
Flex Resistance2,000 N/cm25 N/cm
Crush Resistance TIA/EIA-455-41A1,800 N/cm650 N/cm
Operating Temperature-40°C to +85°C40°C to +85°C
Storage Temperature-55°C to +85°C-55°C to +85°C
Installation Temperature (actual temp. of cable)

-10°C to +60°C

0°C to +60°C
Flame RetardancyUL Listed Type OFNR (UL 1666) and FT4 (CSA C22.2 No. 232)UL Listed Type OFCR (UL 1666) and FT4 (CSA C22.2 No. 232)

Cable Characteristics

Inner Cable

Jacket Color

Black

Jacket Material

Indoor / Outdoor PVC

Buffer MaterialPVC
Cable Weight67 kg/km (45 lbs/1000')
Cable Diameter8.9 mm ( 0.35 in)

Outer Cable

Jacket Color

Yellow

Jacket Material

Indoor / Outdoor PVC

Cable Weight239 kg/km (161 lbs/1000')
Cable Diameter16.7 mm ( 0.66 in)

Single Mode Fiber Information

Single mode fiber cable (Synonyms mono-mode optical fiber, single-mode fiber, single-mode optical waveguide, uni-mode fiber) is a single strand of glass fiber with a diameter of 8.3 to 10 microns that has one mode of transmission. Single mode fiber has a relatively narrow diameter, through which only one mode will propagate typically 1310 or 1550nm wavelengths. Single mode fibers carry higher bandwidth than multimode fiber, but require a light source with a narrow spectral width. Single-mode fiber gives you a higher transmission rate and up to 50 times more distance than multimode. The small core and single light-wave virtually eliminate any distortion that could result from overlapping light pulses, providing the least signal attenuation and the highest transmission speeds of any fiber cable type.
